dog food extruder machine

As the pet food market upgrades, demand for premium dog food continues to surge. The RICHI dog food extruder machine serves as core equipment to produce nutritious, crispy and uniquely shaped dog food.

Get Custom Extruder Quote Click

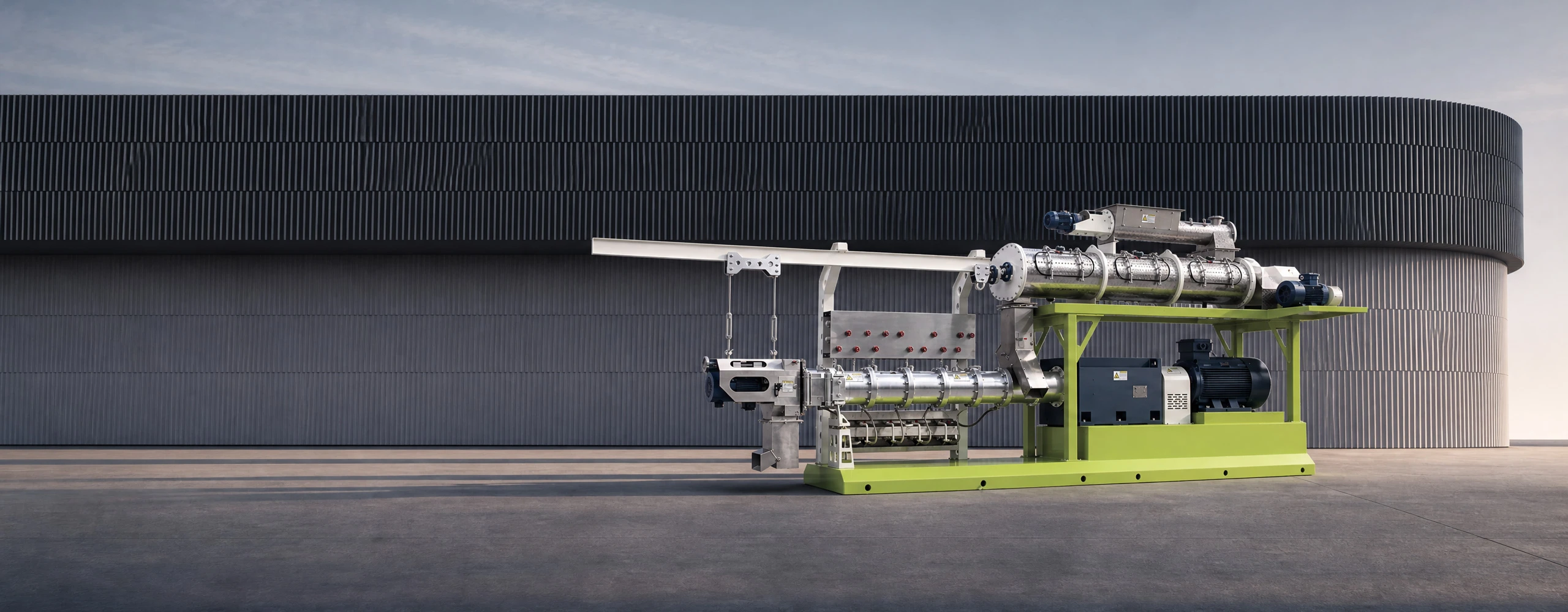

dog food extruder for Sale

RICHI dog food extruder machine utilizes field-proven, dependable extrusion technology optimized for commercial pet food production. These machines deliver consistent, stable operation and can produce kibble in a wide range of shapes.

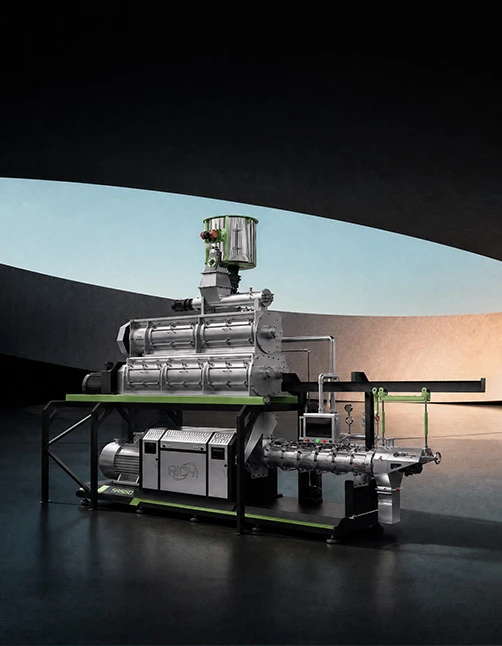

Twin screw dog cat pet food extruder machine display render

dog food production

Capacity

0.5-12T/H

Formula Suitability

High Meat

Modern pet owners seek tastier, more digestible and visually appealing dog food, placing severe limitations on conventional processing equipment. This dog food extruder machine reliably processes recipes with a fresh meat content exceeding 30% while resisting clogging. It is an ideal match for manufacturers dedicated to developing differentiated premium dog food lines.

Book A Video Call Consult Click

Variable-Frequency Anti-Bridge Feeder

A variable-frequency drive adjusts feed rate in real time. The anti-bridge mechanism — dual counter-rotating shafts — breaks material arches, ensuring consistent flow into the extruder.

We’ve seen bridging shut down production lines during peak shifts. This feeder prevents that. Frequency control matches downstream output, while the forced-feed design handles sticky, high-fat pet food recipes that other systems struggle with.

Single-Screw & Twin-Screw Options

Single-screw handles standard formulas at lower cost. Twin-screw — fully intermeshing, zero-clearance — processes high-fat, high-fiber, or fresh-meat recipes that single-screw extruders cannot run reliably.

Single-screw works for basic kibble. But when formulations include fresh meat slurry or elevated fat content, twin-screw is the answer — it self-wipes, resists slip, and delivers uniform expansion. In production, the difference is measurable: fewer rejects, consistent pellet quality, wider recipe flexibility.

Precision Die & Cutter System

The die determines pellet diameter and shape; the cutter — spring-steel blades driven by a variable-frequency motor — trims each pellet to a consistent length, adjustable on the fly.

We position the cutter flush against the die face for a clean shear — no ragged edges, no crumbling. In daily operation, this means uniform pellets that package well and meet customer expectations. Changeover between shapes takes minutes. Simple adjustment, consistent output.

Refined Structural

The quality of premium dog kibble hinges on the precision construction of core components. The following key units dictate the superior quality of dog food during daily production.

Anti-bridging impeller feeder for feed pellet machine

Twin screw barrel shaft for high-fat fresh meat pet food pellet extruder

Adjustable pellet cutter and die plate assembly for pet dog food extruder

Various Capacities

Many customers face challenges in terms of production capacity when choosing a dog food extruder machine. RICHI offers a variety of models for your selection. Welcome to contact us for dog food extruder machine price.

Twin-screw extruder
Model	SPHS75x2	SPHS120*2		SPHS150*2	SPHS185*2
Main Motor Power (kW)	55	90	110	200	355
Screw Diameter (mm)	75	120	120	150	185
Feeder Power (kW)	1.5	1.5	1.5	1.5	2.2
Conditioner Power (kW)	7.5	11	11	11	11
Conditioner Specifications	DC400-244	DC500-244	DC500-244	DC600-300	DC600-300
Differential Conditioner Power (kW)	11	11	11	15	15
Differential Conditioner specifications	DC400*300-244	DC500*400-300	DC500*400-300	DC600*500-300	DC600*500-300
Output（T/H）	0.5-1.0	1.5-2.0	3.0-4.0	5.0-6.0	10-12

	Dry single-screw extruder			Wet single-screw extruder
Model	DGP-90B	DGP-120B	DGP-160B	DSP-90B	DSP-135B
Main motor power (kW)	37	55	90	37	75
Feeder power (kW)	0.75	202	3	7.5	7.5
Cutting power (kW)	0.55	1.1	1.5	1.1	1.5
Screw diameter (mm)	90	120	160	90	135
Overall dimensions (mm)	210014501350	240019501600	310026501800	260016001900	375019801950
Output (T/H)	0.2-0.4	0.5-0.6	0.8-1.0	0.5-0.6	0.8-1.0

Our video showcase

Want a full view of complete dog food extruder machine? The three real-shot videos below show single screw test run, full twin screw extruder structure and key components of high-efficiency feed mixer one by one.

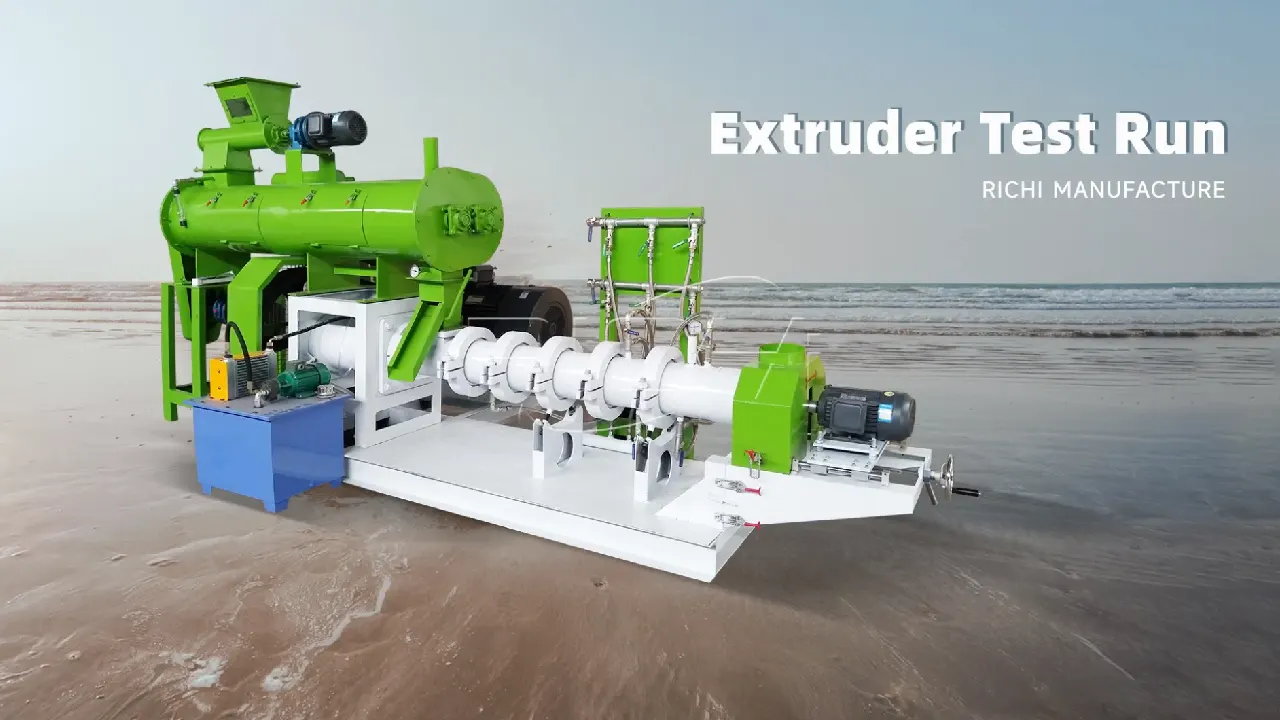

Featured images from a single-screw extruder commissioning video

Single Screw dog food extruder machine Test Run Video

This real-shot factory video fully records the complete test run of our single-screw feed extruder, including raw material water conditioning, electric cabinet precise parameter adjustment and high-temperature high-pressure extrusion, clearly showing the whole workflow of ordinary feed raw materials fully expanded into compact dog food pellets.

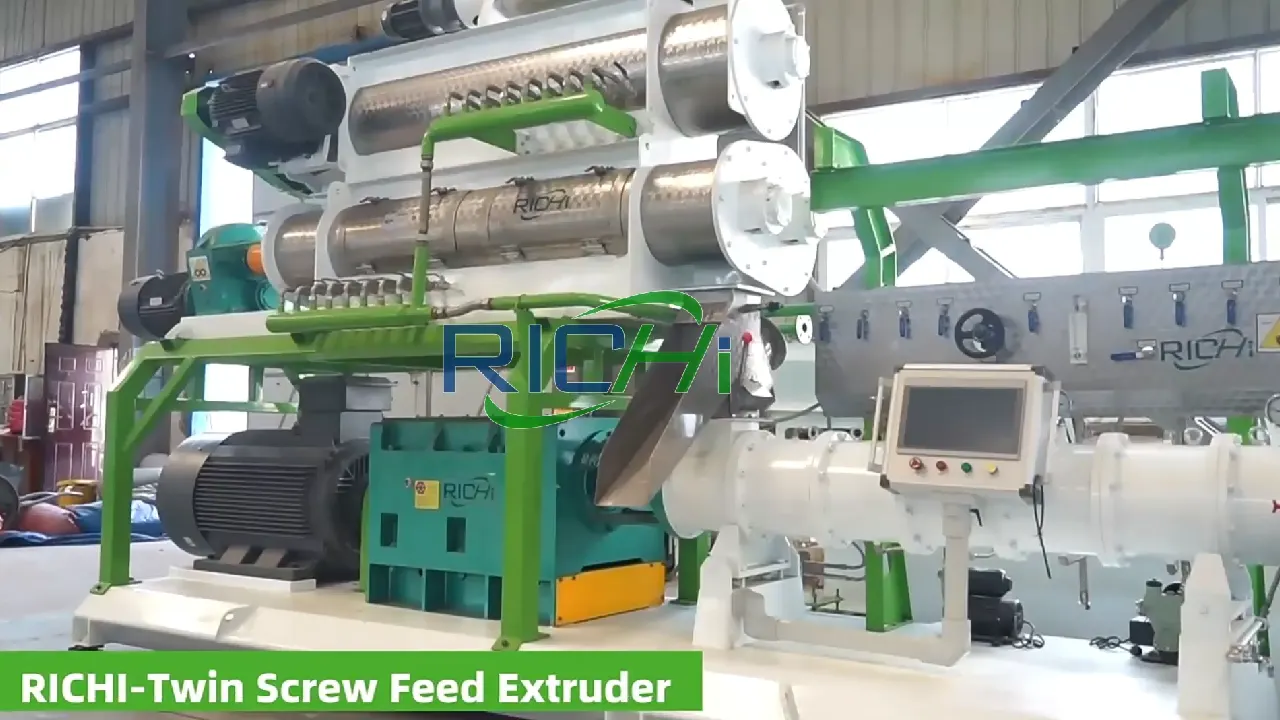

Featured images from the video showcasing the structure of a twin-screw extruder

Twin Screw Feed Extruder Structure Video

This real-shot video fully displays all complete structural details of the premium RICHI twin-screw dog food extruder machine, including double-layer conditioners, fully wear-resistant alloy screws, precise temperature control valves and smart touch screen, explaining its core merits of low power consumption, steady discharge and consistent uniform pellet quality.

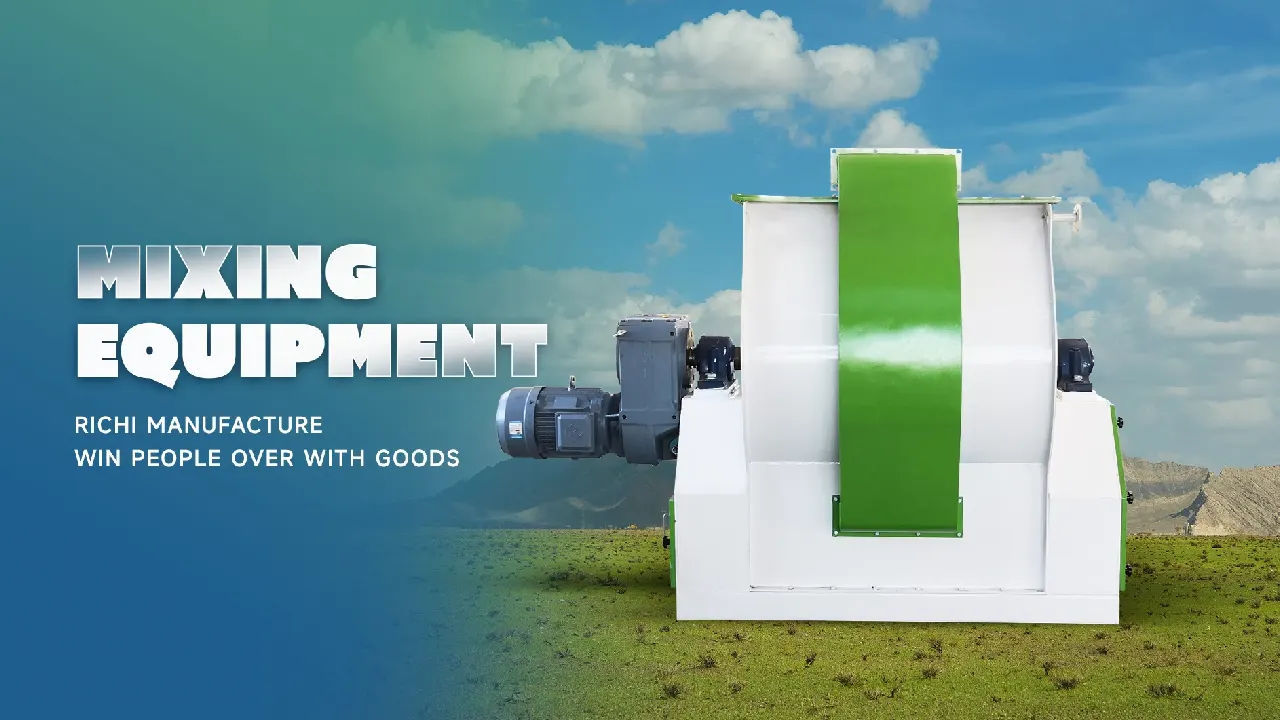

Featured images from the mixer structure demonstration video

Dog Food Mixer Structure Display Video

Mixing is an indispensable key step in high-quality dog food pelleting production. This real-shot video fully shows the complete whole structure of RICHI twin-shaft high-efficiency mixer, including Siemens driving motor, durable SKF bearings, pneumatic valves and stainless steel blades, featuring ultra-even mixing, long service life and simple daily maintenance.

Core Advantages

This dog food extruder machine is built on proven technology and delivers dependable performance. Boasting multiple core strengths, it enables high-efficiency extrusion production and perfectly accommodates diverse formulas and capacity requirements.

High-Meat Formula Compatibility

Custom Shape & Texture

Reliable Hygiene

Flexible Production

High-Meat Formula Compatibility

Our twin-screw extrusion system handles various oil contents up to a maximum of 17%. It also processes high-moisture materials blended with fresh meat paste. Unlike single-screw models, it ensures consistent material conveying without slipping or clogging.

High-oil and high-meat recipes can also run continuously on-site. Such stable performance perfectly supports production schedules for premium dog food brands operating in highly competitive markets.

Custom Shape & Texture

We supply custom dies in a wide array of profiles, including bones, hearts, rings, fish silhouettes and letter shapes. These distinctive designs help your pet food stand out on retail shelves.

Operators can precisely control the degree of puffing and hardness of feed by adjusting the screw speed, conditioning moisture content, puffing temperature, and drying processto to meet the chewing habits of dogs at different life stages.

Reliable Hygiene

Steam inside the DDC differential conditioner heats raw materials to 80–90°C to pre-cook fresh meat slurry and eliminate bacteria. A secondary sterilization takes place in the extrusion chamber at 120–140°C, fully eradicating Salmonella and other harmful pathogens.

The entire machine is constructed from grade 304 stainless steel with seamless, dead-space-free surfaces for easy thorough cleaning. Finished products comply with FDA and EU pet food standards, fully meeting international export regulatory requirements.

Flexible Production

This twin-screw extruder supports multiple production lines. Simply swap the die head and tweak process parameters to manufacture dog food, cat food, aquatic feed and assorted pet treats.

Compared with single-screw machinery, it readily processes complex recipes featuring high oil, high fiber and meat-rich blends. A single unit covers multiple product categories, cutting your equipment investment costs and accelerating your return on investment.

Precisely Tailored Solutions

Based on the specific characteristics of the raw materials or site constraints, RICHI’s engineers will redesign the process workflow and adjust the quantity of required equipment.

Bolivia: 1 T/H Turnkey Dog food production plant

This 1 ton/hour premium dog food production line delivers an annual output of 50,000 tons of fully cooked extruded. It integrates cutting-edge domestic and international specialized pet food processing technology. The finished pellets feature uniform particle size, effectively supporting healthy growth of pet dogs.

Case Area: Bolivia

Customer Output: 1 T/H

Ecuador: 1-2 T/H Cost-Optimized Shrimp & dog Feed Solution

Dedicated shrimp feed and dog food extruder machine lines carry relatively high investment costs. Taking the client’s budget constraints into account, we recommended a general pellet feed production line. This line produces pellets without extra cooling procedures, greatly simplifying the production workflow and delivering substantial cost savings.

Case Area: Ecuador

Customer Output: 1-2 T/H

Argentina: 2.5-3T/H dog Food pellet production line

This dog food plant in Córdoba, Argentina, was built by a local grain cooperative to upgrade raw grain sales. The $11M RICHI extrusion line makes premium dry dog food, hitting 20,000-ton annual output, competing with imports and targeting nearby export markets.

Core Equipment: 2.5-3T/H twin-screw extruder

Main Products: Dry dog food for adult dogs and puppies

Russia: Meat Group’s 4T/H Integrated dog treat extruder Plant

This line in Pushkino, Moscow Oblast serves a local meat group shifting from raw material supplier to finished pet food maker. RICHI delivered full engineering for three integrated lines hitting 30,000-ton annual output, turning slaughter by-products into low-cost domestic cat & dog food amid Russia’s import substitution trend.

Suggested Retail Price: US$1,850,000

Main Products: Extruded dry dog food, baked dry food

More Cases

0.5-2TPH Small Extruder Aquatic Feed & Pet Food Pellet Production Line

2-3T/H Small-scale extruded pellet production plant

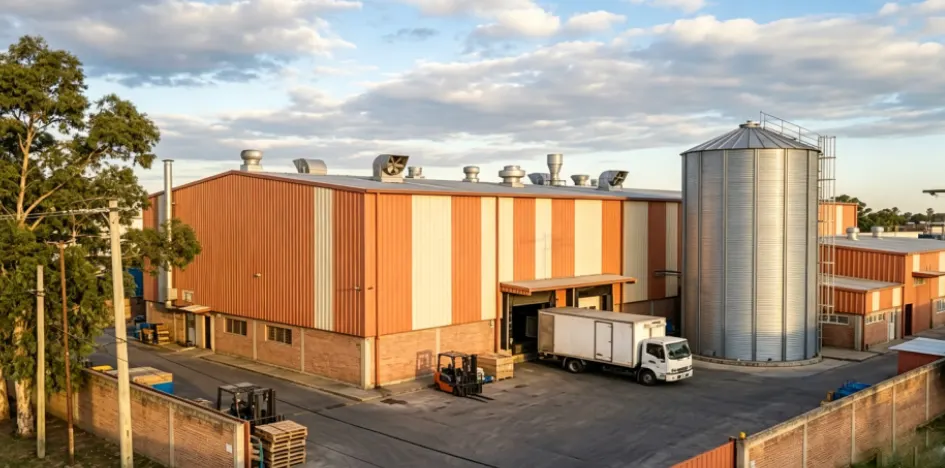

2-3T Medium-Sized Pet Food Pelletizing Plant Project (Cat, Dog, Rabbit, etc.)

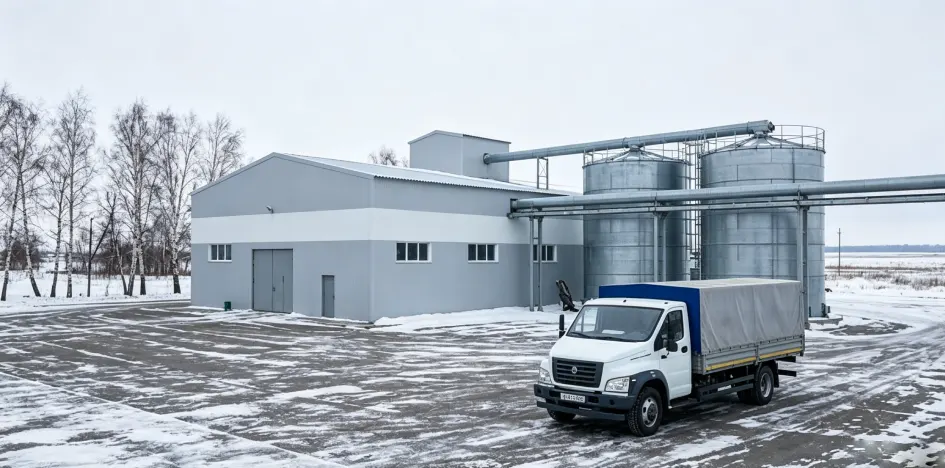

3-4T Medium-Sized Pet Food Pelletizing Project (Snow Scene)

Dog food Processing Flow

RICHI twin-screw wet extrusion lines manufacture crisp pet kibble in a wide variety of shapes. The complete production flow includes grinding, meat addition, conditioning, extrusion, drying, coating, cooling and packaging, yielding highly palatable finished pet food.

Explore Full Feed pellet Production Line Click

Water drop type hammer crusher mill for grain straw raw material grinding

Crushing

Raw materials like corn, soybean meal, and meat by-products are fed into a hammer mill with interchangeable screens. The mill reduces them to a fine, uniform powder, ensuring proper particle size for efficient steam penetration and gelatinization during cooking.

Mixing

The ground powder is precisely weighed according to the formulated recipe using a high-accuracy batching scale, then transferred to a twin-shaft paddle mixer. Here, it is blended with water, steam, and liquid additives to form a homogeneous dough.

Twin screw extruder machine for aquatic and pet feed production line

Extrusion

Conditioned material is fully melted inside the twin-screw extruder and shaped through custom dies. The line produces standard kibble profiles. A variable-frequency cutter enables adjustable cutting speed to precisely control pellet lengths between 10 mm and 20 mm.

Drying

Right after extrusion, damp fresh kibble moves into our multi-layer mesh belt dryer. We set separate hot air zones between 90°C and 100°C to limit heavy Maillard browning. A reliable dehumidifier cuts pellet moisture to 8–10%, delivering ideal crunch for dog food.

Spraying

Hot dried pellets enter the drum coater, where natural animal fats (chicken fat, beef tallow) and flavor enhancers such as meat powder and cheese powder are also added. The roller constant tumbling delivers even fat coverage, creating glossy, rich-flavored pet food pellets.

Automatic weighing packaging machine for finished pellets

Cooling & packaging

Coated pellets are cooled to ambient temperature to prevent fat oxidation. Fine crumbs are removed via vibrating screens prior to accurate weighing. Finished goods are packed in nitrogen-flushed sealed bags or woven sacks, neatly stacked and transported to warehouses for storage.

Frequently Asked Questions

In actual production, customers often encounter common operational challenges. To help you select and operate pellet mills effectively, we have compiled six frequently asked questions with detailed answers.

Whether you are new to feed pelleting or planning to upgrade your existing line, this guide will provide valuable insights. The RICHI technical team is ready to offer one-on-one professional support at any time.

Learn More About animal feed machine

What are the differences between dog food and fish feed extruders?

They share the same basic structure, yet dog food extruders are specially optimized for pet food production. They support custom-shaped dies, allow fresh meat slurry inclusion up to 30%, and come with dedicated spraying systems. You can switch production lines effortlessly by swapping dies, adjusting screw configurations and modifying process parameters.

How to control the crispness of extruded dog food pellets?

The crisp texture of extruded dog food depends on two core factors: pellet expansion rate and drying treatment. You could freely adjust key production parameters including starch proportion, conditioning humidity, extrusion temperature, screw rotation speed and drying conditions to customize kibble texture. Typically, puppy formulas need extra crispness, while adult dog food adopts a firmer texture.

Can dog food pellet shapes be customized during production?

Sure! Pellet shapes are formed via alloy dies crafted into various profiles such as bones and hearts. To guarantee uniform pellet size, the die hole area and cutting speed must be matched to production output and extrusion velocity. Durable dies range in price from several hundred to thousands of US dollars, and exclusive custom shapes effectively boost brand recognition.

Why is fat spraying necessary for finished dog food pellets?

Spraying chicken fat, beef tallow and other animal fats improves palatability and energy density. It also enables seasoning powders to adhere firmly and enhances the visual appeal of pellets. The recommended dosage ranges from 5% to 10%. Excessive fat will leave pellets greasy, harming texture and long-term storage stability.

Why avoid screw conveyors for extruded pet pellets?

Extruded pellets are porous and fragile. Screw conveyors crush pellets and generate excessive fine crumbs. The industry standard alternatives are pneumatic conveying systems, bucket elevators and belt conveyors. These pieces of equipment eliminate compression, shearing force and harsh vibration, preserving pellet integrity and raising finished product yield.

Can the line be installed in a 6-meter high workshop?

A standard fully automatic production line requires around 12 meters of vertical clearance, which is incompatible with 6-meter-tall workshops. We provide a split-type semi-automatic solution that separates processing sections to cut height requirements. This layout operates reliably under such constraints and only requires minimal manual material handling.

Multi-series Pelletizing Solutions

Whether it is animal feed pellets or biomass fuel pellets, RICHI will give you the right solution to ensure efficient operation, high quality output and low cost production. Learn more about pelletizers and auxiliary equipment and how to create a complete and sustainable pellet production line.

Full animal feed pellet mill plant panoramic aerial view

SZLH Series

Feed Specialized pellet Mill

This full machine series is engineered to produce feed for livestock, poultry and aquatic animals. Hourly output spans 1 to 40 tons, and it matches production demands from small operators to big feed processing plants.

Industrial wood biomass combustion fuel pellet plant construction site

MZLH Series

Wood Biomass Fuel Pellet Mill

Equipped with arch-breaking hoppers and forced feeders, the series pellet mills effectively solve material bridging issues of fluffy wood materials, widely applied in industrial boilers, heating and biomass power generation.

Straw biomass forage pellet turnkey plant equipment overview

CZLH Series

Straw Biomass Pellet Mill

The series pellet mills process straw, husk and alfalfa into biomass fuel or ruminant feed pellets. Fitted with dual anti-bridging screw feeders and high-torque 8-pole motors, it handles tough, high-moisture fibrous materials efficiently.

RICHI aquatic fish feed extrusion pellet plant full factory aerial shot

SPHS Series

Aquatic feed extruder

RICHI aquatic feed extruders manufacture floating, slow-sinking and sinking fish & shrimp feeds alongside various pet food. Available in single-screw and twin-screw versions, the full product line accommodates diversified feed formulas.

Organic fertilizer pellet processing large factory with chimneys

FZLH Series

Organic fertilizer pellet mill

The series pellet mills turns manure, straw and kitchen scraps into organic fertilizer pellets. Standard anti-bridging hoppers, forced feeders and low-compression rings prevent blockage of sticky, high-moisture raw materials.

Complete cat litter pellet production plant exterior factory building

MSZLH Series

eco Cat litter pellet mill

This product series is equipped with stainless steel anti-bridging hoppers and variable-speed augers, it handles viscous wet raw materials with ease, and produces flushable, well-clumping eco-friendly cat litter pellets.
