EFB pellet mill

RICHI’s purpose-built EFB pellet mill turns palm oil mill waste into premium biomass fuel pellets, offering a profitable, eco-friendly solution for palm plantations.

Get Custom Pellet Machine Quote Click

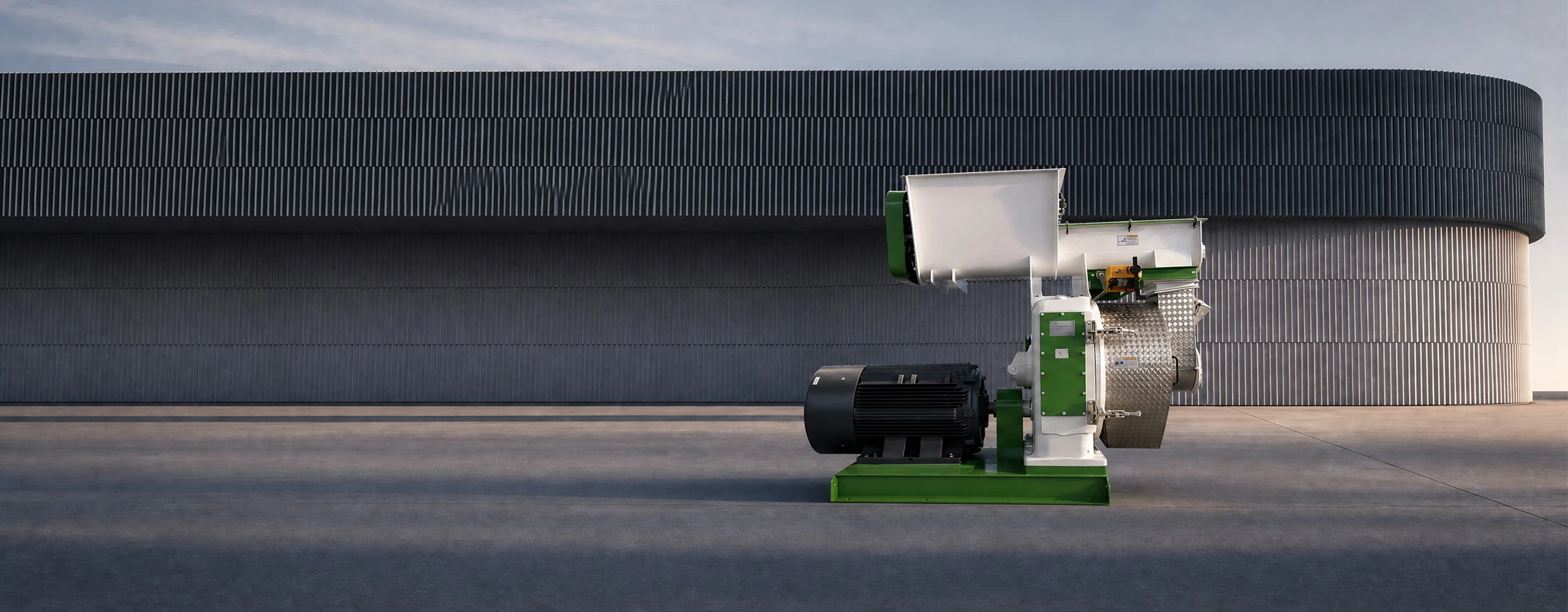

EFB Pellet Mill for Sale

Our heavy-duty EFB pellet mill features super wear-resistant dies, and forced feeding. Combined with dedicated pretreatment processes, it withstands corrosion and abrasion from high-moisture and high-fiber materials. We provide complete production lines with capacities ranging from 1 to 30 t/h.

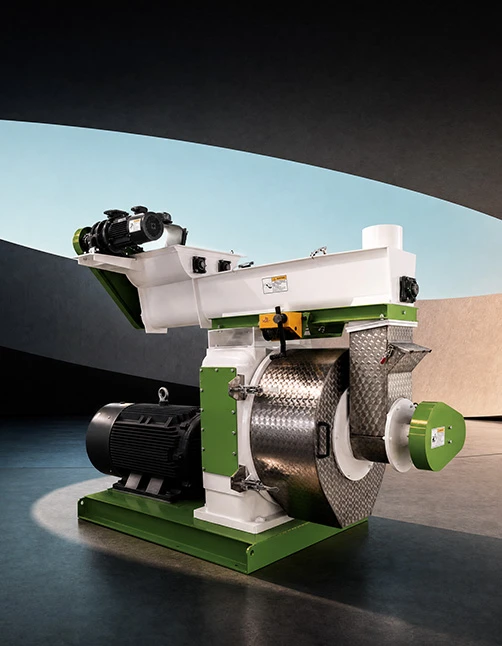

EFB biomass fuel pellet mill exhibition picture

EFB Pellet production

Capacity

1-30T/H

calorific value

4000 kcal/kg

EFB is high in moisture, tough-fibered, and corrosive, making pelleting extremely challenging. RICHI’s specially reinforced design overcomes these issues, producing clean-burning, high-calorific-value pellets, helping SE Asian plantations convert waste into steady revenue.

Book A Video Call Consult Click

Anti-bridging & Forced Feeding System

EFB raw material has long, fluffy fibers that are prone to arching. This pellet mill is equipped with a dedicated anti-bridging feeder, whose reverse rotating shafts continuously disperse materials to prevent bridging.

Before entering the granulation chamber, the material pass through a forced feeder, it pushes materials horizontally into the pressing chamber via screws and blades. It ensures steady and even feeding to ring dies and rollers, effectively stopping production downtime caused by empty material flow.

Ring Die & Roller Assembly

We fabricate the ring die with 42CrMo‑alloy steel and apply carburizing treatment to boost its surface hardness. It offers far better wear resistance than stainless steel dies on common feed pellet mills against continuous abrasion from EFB fibers.

Alloy steel roller shells with optimized working areas are also applied. The well-matched components sustain stable output and reliable pellet quality for abrasive biomass raw materials.

High-torque Power System

The main motor adopts a 6 to 8-pole design. It runs at a lower speed yet generates far higher torque than the 4-pole motors used on ordinary pellet mills.

This configuration is customized for high-fiber, difficult-to-form materials like EFB and sawdust. Low speed and high torque provide sufficient compression to form dense pellets, , while reducing the impact load during equipment operation and extending the service life of core components.

Refined Structural

EFB is one of the most difficult pelleting materials. Our exclusive core configurations are specially designed to solve all EFB pelleting challenges.

Anti-bridging forced feeding hopper for palm EFB biomass pellet machine

High abrasion resistant alloy ring die for palm EFB biomass fuel pellet mill

High torque power motor for difficult fiber EFB biomass pellet production

Various Capacities

Many customers face challenges in terms of production capacity when choosing a EFB pellet mill. RICHI supplies various EFB pellet mill models for you to choose from, and we list each model’s detailed parameters below.

Model	MZLH320	MZLH350	MZLH420	MZLH520	MZLH678	MZLH768
Main Motor Power(kw)	22	37	90	132	200	250
Arch-breaking Feeder Power(kw)	2.2	2.2	3	3	3	4
Forced Feeder Power(kw)	0.75	0.75	1.5	1.5	1.5	1.5
Ring Die Inner Diameter（mm）	320	350	420	520	673	762
Finished Particle Diameter(mm)	4~12
Output（T/H）	0.2-0.3	0.3-0.5	1.0-1.2	1.5-2.0	2.5-3.0	3.0-4.0

Our video showcase

Want a full overview of complete EFB palm waste pelleting solutions? The three real-shot videos below introduce palm waste recycling process, core components of mill and the electrical control cabinet for full production lines.

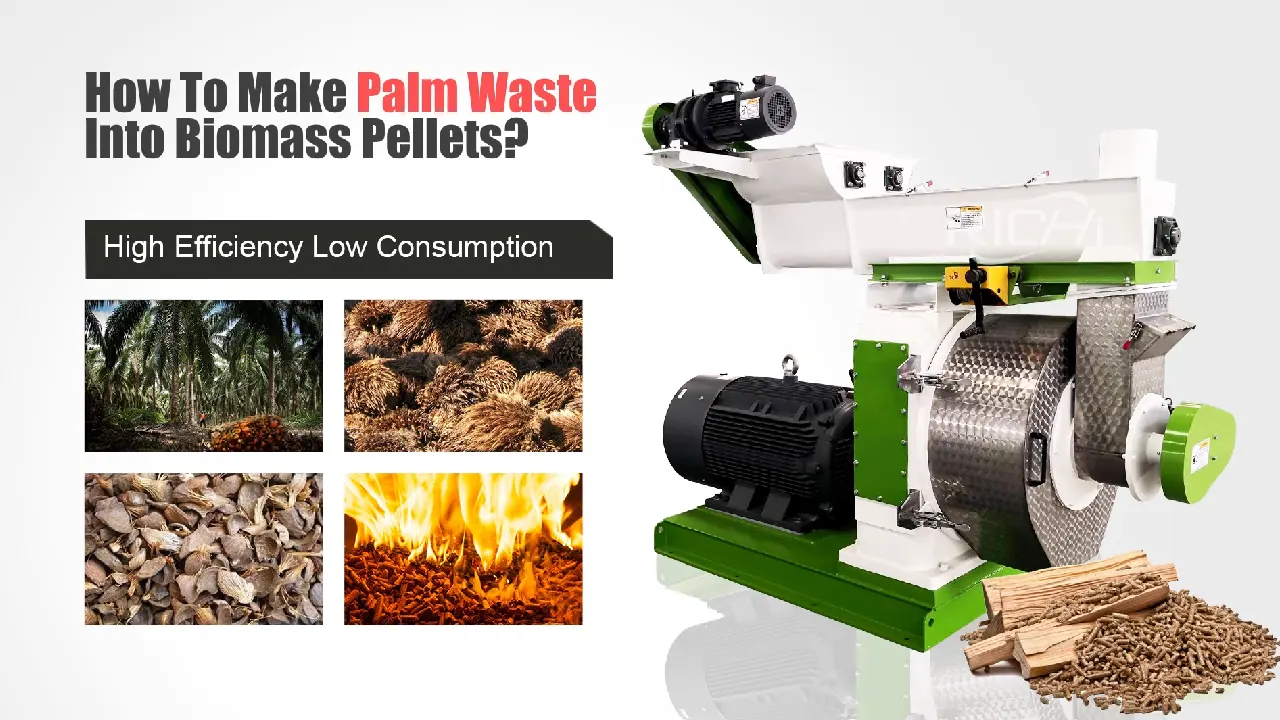

Featured images from a video on the efficient recycling and processing of palm fiber waste

How can I efficiently recycle and process palm fiber waste?

Are you wondering how to fully and efficiently recycle various palm waste materials? Our professional EFB pellet machine can process palm fronds, empty fruit bunches, palm fiber, palm leaves and palm bark into premium biomass pellets with high calorific value and low ash content for clean combustion.

Featured images from the MZLH520 pellet mill component demonstration video

MZLH520 EFB Pellet Mill Component Showcase

If you need sharp close-up shots of key EFB pellet machine parts, this video presents core components of the MZLH520 biomass pellet machine, including force feeder, corrosion-proof stainless steel pelletizing chamber, efficient SIEMENS motor and full safety assembly, emphasizing wear-resistant raw materials and consistent, long-lasting pelleting performance.

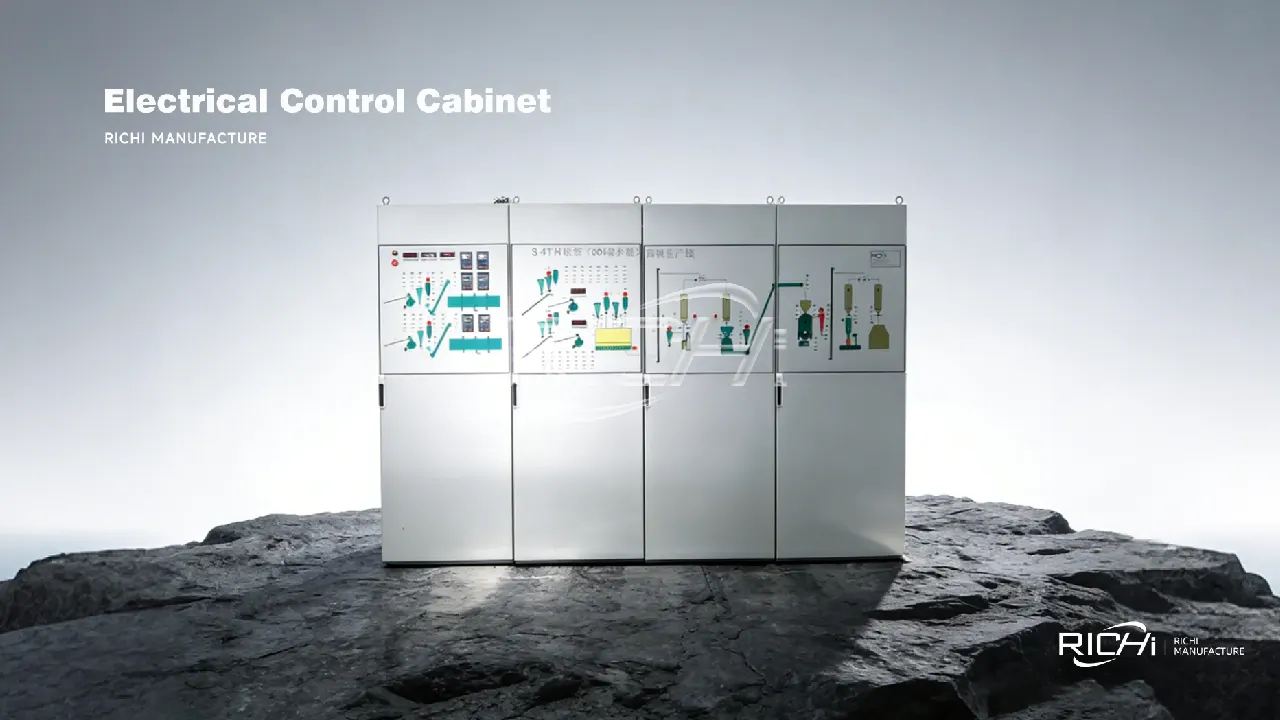

Featured images from the intelligent control cabinet demonstration video

Biomass Line Intelligent Control Cabinet Showcase

Worried about complex procedures and high labor costs in EFB pellet manufacturing? RICHI’s all-in-one intelligent control cabinet takes centralized charge of the full production line. This video exhibits process flow panels, built-in inverters and tidy wiring to demonstrate its steady, hassle-free automatic control capability.

Core Advantages

This professional EFB pellet mill is tailor-made for processing empty fruit bunches. It integrates high efficiency, stable operation, durable structure and full automation. Its outstanding advantages will effectively boost your overall production efficiency and create greater economic benefits.

Tackle Tough EFB Fibers

Excellent Combustion

Cuts Maintenance Costs

Less Manual Work

Tackle Tough EFB Fibers

Fitted with heavy-duty dual-shaft agitators, twin-screw cutting feeders and 200-250kW 8-stage high-torque motors, this machine perfectly handles wet EFB with 40% moisture content and fibers up to 50cm long. It effectively prevents material clogging and fiber tangling during operation.

Meanwhile, the pellet mill’s feeder can operate continuously for 8 hours without cleaning. Tailored for local conditions, it is the ideal solution for processing palm oil waste across Southeast Asia.

Excellent Combustion

Optimized with a compression ratio from 6 to 12, the pellet mill is specially built for EFB biomass fuel production. The finished pellets feature high density, solid texture, smooth surface and extremely low breakage rate. Its calorific value reaches 3900-4800 kcal/kg and fully meets fuel standards of Japanese biomass power plants.

The finished granules are moisture-resistant and suitable for long-distance sea transport, at the same time, pellet ash can be reused as organic potash fertilizer to achieve sustainable resource recycling.

Cuts Maintenance Costs

EFB contains silicate compounds that cause severe abrasion to metal parts. To end this, both the carburized ring die and roller shells of the EFB pellet mill are made of wear-resistant alloy steel, boasting a far longer service life than ordinary stainless steel components.

The wear of the ring die flare can be repaired with a special machine, further reducing the frequency of parts replacement. Meanwhile, equipped with shear pin protection, the unit cuts power automatically against hard debris to protect the main machine and slash long-term maintenance costs.

Less Manual Work

We deliver a complete automatic production line covering drying, crushing, pelleting, cooling and packaging, fully controlled by the PLC system. Operators only need to monitor the line remotely in the control room and stay away from harmful EFB dust and acid steam.

At the same time, robotic palletizing is available as an optional upgrade to reduce labor work. Built-in automatic fault alarm ensures the whole line runs safely and reliably all the time.

Precisely Tailored Solutions

Based on the specific characteristics of the raw materials or site constraints, RICHI’s engineers will redesign the process workflow and adjust the quantity of required equipment.

Taiwan, China: 1-1.2 t/h biomass/wood pellet production line

Custom-built for special lightweight and durable raw materials, this line adopts a dedicated hammer mill for stable capacity. Covering 12×8×8 meters with 200KW/H power consumption, it needs 3 workers and a 30-day installation, delivering complete drawings, 2-year warranty and lifelong free technical support.

Main Equipment: Hammer mill, storage silo, pellet mill, cooler, shifting machine, simple tonnage packaging system.

Raw Materials: waste of wood plate
Particle Size: 6.0-12.0mm

Malaysia: 1.5-2 t/h Empty fruit bunch Pellet Plant

Tailored for Malaysia’s massive high-moisture EFB waste, this turnkey line features professional drying systems to standardize moisture. It solves pellet looseness and moisture issues, reducing energy consumption for stable high-quality eco-fuel production.

Configuration Features: To solve EFB pellets’ moisture absorption issue, the line is equipped with storage bins, moisture-proof packaging and carbonization devices.

Raw Materials: empty fruit bunches, sawdust
Particle Size: 8mm

Romania: 2-2.5 h/t Wood & EFB Pellet Production Line

Leveraging Romania’s abundant forest resources and EU green energy subsidies, this project was installed in 50 days. It converts diverse wood residues into premium biomass pellets with full intelligent equipment, helping clients seize the booming European clean energy market.

Main Equipment: Screening machine, wood chip crusher, MZLH-520 wood pellet mill, counter-current cooler, screw conveyor, etc.

Transaction Amount: $228,000
Particle Size: 6-12mm wood fuel pellet

Venezuela: 10-12 t/h Multi-Raw Material Combustion Pellet Plant

This 10–12t/h biomass pellet line in Venezuela costs $450,000 and delivers an annual output of 30,000 tons. It recycles local sawdust, straw and rice husks into eco-friendly solid fuel boilers, creating local jobs while realizing full waste recycling under RICHI’s simple and stable process design.

Main Equipment: 470KW Biomass Pellet Mill * 4, Crusher, Conveyor Belt, 4.5m * 4.5m Silo, Bag Filter, etc.

Installation Period: 30 days
Particle Size: 6.0-10.0mm

More Cases

Actual layout of a 1-2TPH pellet production line

Romania: 2-2.5 h/t Wood Pellet Production Line

Multi-raw material combustion pellet production line

EFB Pellet Processing Flow

RICHI EFB pellet line is engineered for palm empty fruit bunches. It turns this fibrous, moist and corrosive waste into biomass fuel with shredding, drying, feeding and wear-resistant pelleting units.

Explore Full Biomass Pellet Production Line Click

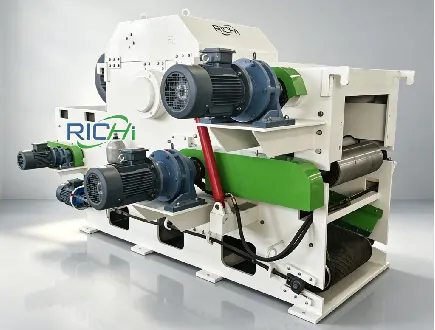

Palm leaf crushing shredder machine for EFB biomass pellet making

Shredding

Fresh EFB bunches with moisture content of 60-70% are conveyed into the shredder. The moving and fixed blades on the blade shaft work together to shred EFB into small pieces of 5-10cm, while tearing apart the fibers and removing any attached pulp residue.

Drying

Shredded EFB is processed in a three-cylinder drum dryer heated by 500℃ hot air furnace. Its special structure enables circulating material movement for high thermal efficiency, reducing the moisture content of the material to 18-25%. Spark arrester and explosion-proof doors are installed for fire prevention.

Grinding

Semi-dry EFB is ground by a hammer mill fitted with 6-8mm screen. Tungsten carbide welded hammers produce 3-5mm fine fiber powder. Air conveying, double cyclone and pulse dust collector work together, supported by high-torque motor for tough EFB fibers.

RICHI biomass wood fuel pellet mill for heating combustion pellets production

Pelletizing

The shredded EFB powder is fed into the pellet mill via a heavy-duty anti-bridging hopper and a dedicated twin screw feeder with cutters to effectively prevent fiber tangling. Meanwhile, the high-strength 42CrMo alloy steel ring die adopts a compression ratio of 1:8-1:12 for consistent, reliable pellet formation.

Cooling

Hot pellets at around 90℃ enter the counter-flow cooler. Its interior with stainless steel and anti-corrosion coating resists acid steam damage. After 15-20 minutes of cold air circulation, pellets cool to room temperature with 10-12% final moisture.

Pellet vibrating grading screen machine to sieve uniform feed pellets

screening & packaging

Cooled pellets go through vibrating sieve to separate fine dust, then qualified products enter the silo, while unqualified materials are reprocessed. EFB pellets absorb moisture easily. Store them in a dry warehouse. Add desiccants for sea shipping.

Frequently Asked Questions

In actual production, customers often encounter common operational challenges. To help you select and operate pellet mills effectively, we have compiled six frequently asked questions with detailed answers.

Whether you are new to feed pelleting or planning to upgrade your existing line, this guide will provide valuable insights. The RICHI technical team is ready to offer one-on-one professional support at any time.

Learn More About Biomass Pellet Machine

What is EFB and what are the benefits of turning it into pellets?

EFB, or Empty Fruit Bunch, is fibrous waste from palm oil production. Southeast Asia produces millions of tons of it annually. Traditional disposal like burning and landfilling causes severe pollution. Pelletizing reduces its volume to one-tenth, greatly easing storage and transport. The finished pellets work well as biomass fuel or raw material for activated carbon, making it an ideal solution to recycle palm oil waste.

Why is EFB pelletizing more difficult than wood pelletizing?

EFB features long tough fibers, 60-70% high moisture content, potassium salts and sandy soil that wear and corrode machines. Its sugar content also leads to carbonization under heat. We adopt shredders, cutting screw feeders and three-cylinder dryers, plus wear-resistant dies, rollers and temperature control. Our upgraded pellet mills have run reliably in many Southeast Asian projects.

What are the main applications of finished EFB pellets?

EFB pellets have three major applications. They serve as eco-friendly biomass fuel for power plants and industrial boilers. After carbonization and activation, they become high-value activated carbon for water treatment, air purification and gold extraction. They can also be processed into potassium-rich organic fertilizer. We will adjust the production process according to the different uses of our customers.

What professional anti-corrosion measures do EFB production lines require?

EFB contains organic acids that corrode equipment under high temperature and humidity. All material contact parts adopt 304 stainless steel plating, paired with acid and alkali resistant fluororubber seals. Negative pressure ventilation discharges corrosive steam outdoors, while rings dies and rollers use anti-corrosion alloys. These slight extra investments ensure stable and long-term operation of the whole production line.

What safety protection features does the EFB pellet machine equip?

Our EFB pellet mill is equipped with multi-level safety protections for stable and safe operation. A Iron removal device at the feeding section keeps iron scraps from damaging ring dies and rollers. The main drive has overload protection to cut power and trigger alarms amid abnormal current. Star-delta starting lessens motor impact. Safety limit switches on all access doors stop operation if doors are open, fully protecting operators.

Any cost-effective simple line refusing full-automatic pellet plants?

We provide a split semi-automatic production solution divided into three independent modules: crushing, drying, and pelletizing with cooling and packaging. Material transportation relies on forklifts and manual work. This solution only requires a 6-meter workshop height and saves costs on steel structures and automatic components. However, its labor costs may be high and it may generate dust pollution.

Multi-series Pelletizing Solutions

Whether it is animal feed pellets or biomass fuel pellets, RICHI will give you the right solution to ensure efficient operation, high quality output and low cost production. Learn more about pelletizers and auxiliary equipment and how to create a complete and sustainable pellet production line.

Full animal feed pellet mill plant panoramic aerial view

SZLH Series

Feed Specialized pellet Mill

This full machine series is engineered to produce feed for livestock, poultry and aquatic animals. Hourly output spans 1 to 40 tons, and it matches production demands from small operators to big feed processing plants.

Industrial wood biomass combustion fuel pellet plant construction site

MZLH Series

Wood Biomass Fuel Pellet Mill

Equipped with arch-breaking hoppers and forced feeders, the series pellet mills effectively solve material bridging issues of fluffy wood materials, widely applied in industrial boilers, heating and biomass power generation.

Straw biomass forage pellet turnkey plant equipment overview

CZLH Series

Straw Biomass Pellet Mill

The series pellet mills process straw, husk and alfalfa into biomass fuel or ruminant feed pellets. Fitted with dual anti-bridging screw feeders and high-torque 8-pole motors, it handles tough, high-moisture fibrous materials efficiently.

RICHI aquatic fish feed extrusion pellet plant full factory aerial shot

SPHS Series

Aquatic feed extruder

RICHI aquatic feed extruders manufacture floating, slow-sinking and sinking fish & shrimp feeds alongside various pet food. Available in single-screw and twin-screw versions, the full product line accommodates diversified feed formulas.

Organic fertilizer pellet processing large factory with chimneys

FZLH Series

Organic fertilizer pellet mill

The series pellet mills turns manure, straw and kitchen scraps into organic fertilizer pellets. Standard anti-bridging hoppers, forced feeders and low-compression rings prevent blockage of sticky, high-moisture raw materials.

Complete cat litter pellet production plant exterior factory building

MSZLH Series

eco Cat litter pellet mill

This product series is equipped with stainless steel anti-bridging hoppers and variable-speed augers, it handles viscous wet raw materials with ease, and produces flushable, well-clumping eco-friendly cat litter pellets.
