sawdust pellet machine

RICHI’s customized MZLH sawdust pellet machine targets fine sawdust. It turns fine wood scraps directly into premium high-value biomass pellets with optimized core structural design.

Get Custom Pellet Machine Quote Click

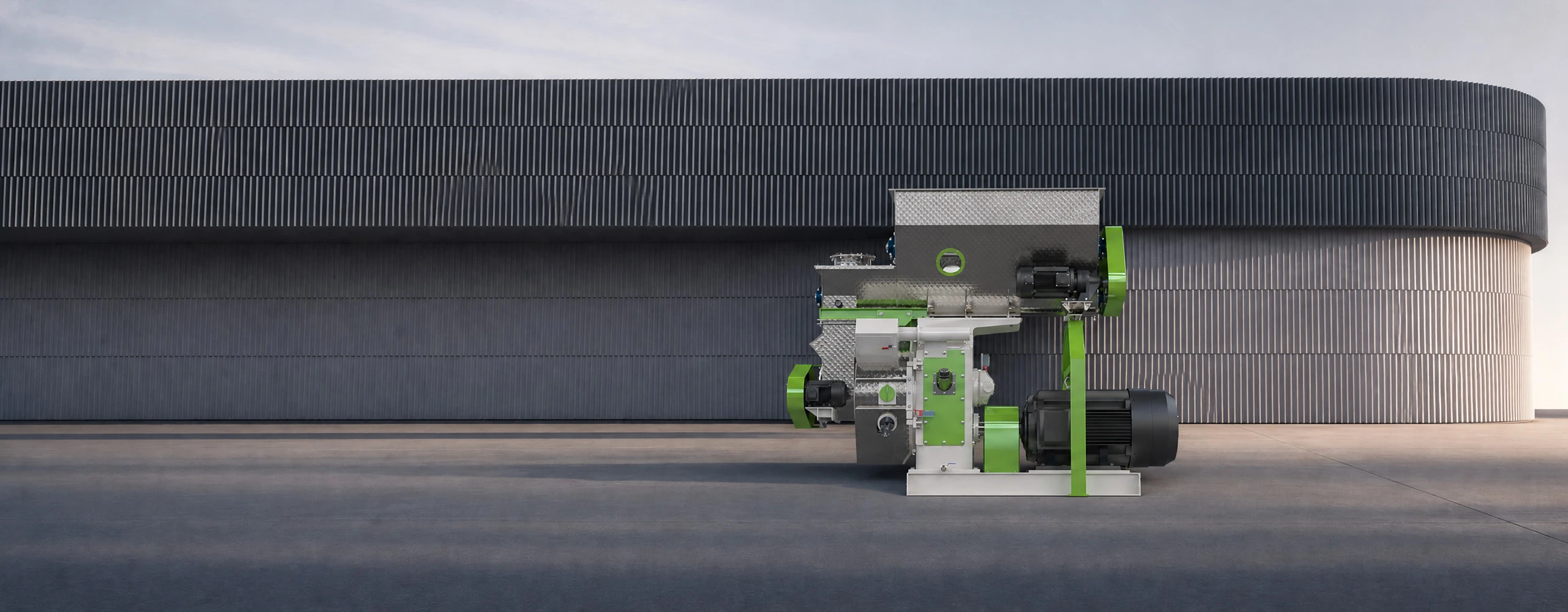

sawdust pellet machine for Sale

The whole machine’s made of high-strength steel and stainless steel, so it stays stable and tough even when running nonstop under heavy loads. It’s perfect if you want to set up a biomass pellet line that’s efficient, eco-friendly, and makes you money.

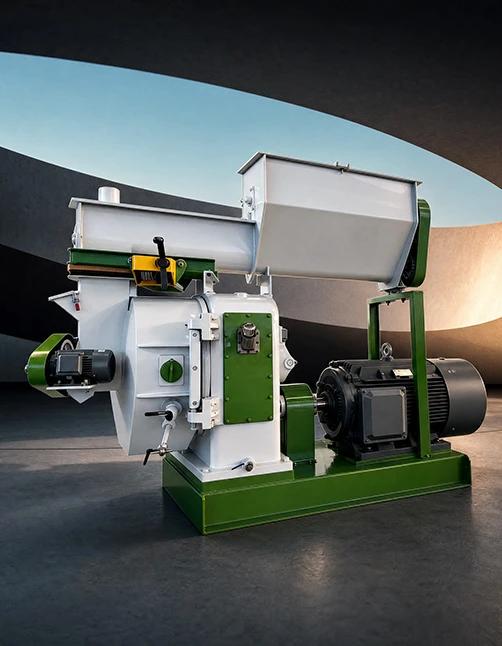

Sawdust wood chip biomass pellet mill equipment exhibition image

Sawdust pellet production

Capacity

1-30T/H

Particle diameter

6–12 mm

With 1–3 mm particle size, sawdust needs no crushing but clogs ring dies easily. RICHI’s tailored design solves feeding blockage perfectly. Finished pellets have high calorie content and low ash content, helping woodworking factories turn low-cost waste sawdust into high-profit premium eco-fuel.

Book A Video Call Consult Click

Variable-frequency Feeding System

Sawdust features ultra-high fluidity, which easily causes free-flow runaway and uneven feeding with conventional feeders. The RICHI MZLH series adopts variable-frequency dual-screw feeders plus outlet gate valves to realize stepless feeding adjustment across all speeds.

Its 304 stainless steel polished casing avoids material adhesion and consistently delivers even, stable sawdust into the pelletizing chamber for smooth production.

Ratio Alloy Steel Ring Die

Raw sawdust measures merely 1-3mm, requiring no high compression for molding, so a customized low-compression ring die greatly boosts production efficiency. Made of 42CrMo alloy steel with carburizing hardening treatment, the die delivers outstanding wear resistance and long service life.

It adopts a 1:6 to 1:8 low compression ratio, standard 6mm and 8mm holes, and over 40% opening rate. The unique counterbore inlet and stepped outlet structure effectively reduces die clogging and carbon deposition risks.

Main Motor & Blockage Cleaning Device

Equipped with customized 22kW-250kW 8-pole low-speed high-torque main motors, the machine features sufficient power, strong extrusion force and lower energy consumption for long-term high-intensity sawdust pelletizing.

A dedicated quick-clean opening is designed on the pellet chamber cover. Operators can clear die blockage through compressed air or manual pins easily, without disassembling the heavy ring die, which greatly reduces downtime and improves overall production efficiency.

Refined Structural

Sawdust pellets form easily yet slip out of die holes due to smooth texture. Our customized components are specially engineered to solve this issue for pelletizing.

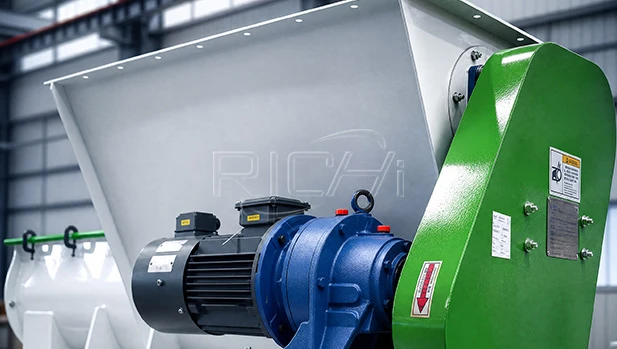

Feeding machine for sawdust wood biomass pelletizer

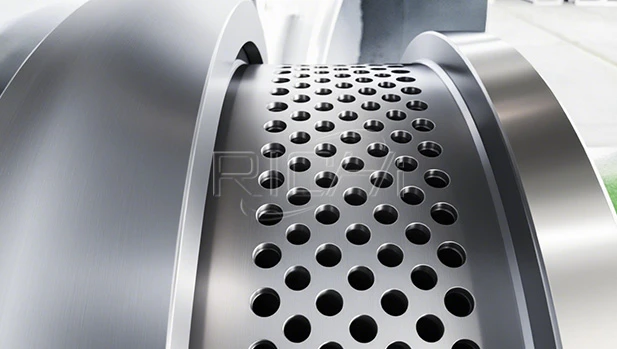

Low compression anti-block ring die for sawdust combustion biomass pellet mill

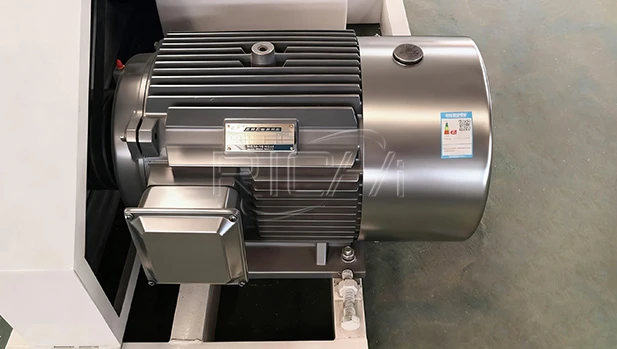

Energy saving high torque main motor for sawdust wood fuel pellet line

Various Capacities

Many customers face challenges in terms of production capacity when choosing a sawdust pellet machine. RICHI offers a variety of models for your selection. Welcome to contact us for sawdust pellet machine price.

Model	MZLH320	MZLH350	MZLH420	MZLH520	MZLH678	MZLH768
Main Motor Power(kw)	22	37	90	132	200	250
Arch-breaking Feeder Power(kw)	2.2	2.2	3	3	3	4
Forced Feeder Power(kw)	0.75	0.75	1.5	1.5	1.5	1.5
Ring Die Inner Diameter（mm）	320	350	420	520	673	762
Finished Particle Diameter(mm)	4~12
Output（T/H）	0.2-0.3	0.3-0.5	1.0-1.2	1.5-2.0	2.5-3.0	3.0-4.0

Our video showcase

Want a full overview of sawdust pelleting solutions? The three real-shot videos below introduce core parts of MZLH520 mill, factory test operation, and the complete 1-2t/h wood pellet production line project.

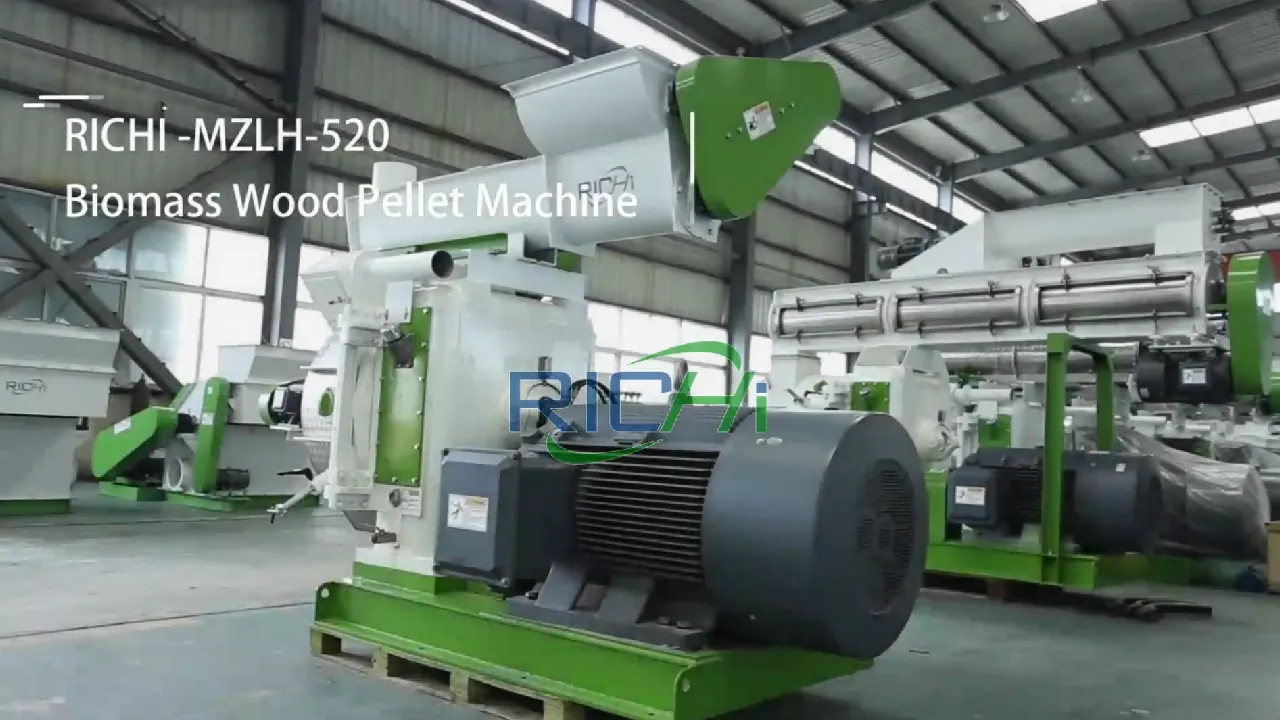

Featured images from the MZLH520 pellet mill component demonstration video

MZLH520 sawdust pellet machine Component Showcase

If you need clear close-ups of sawdust pellet machine parts, this video shows core components of MZLH520 combustion pellet machine, including force feeder, stainless steel pelletizing chamber, SIEMENS motor and safety assembly, highlighting durable materials and reliable pelleting performance.

Featured images from a video showcasing the trial operation of a sawdust pellet mill factory

sawdust pellet machine Factory Test Run Video

This real-shot factory video fully displays the complete test run process of the RICHI sawdust pellet maker. It covers die & roller routine inspection, raw sawdust feeding and continuous pellet discharging, intuitively demonstrating ultra-smooth long-hour running performance and uniform, high-density finished pellet quality.

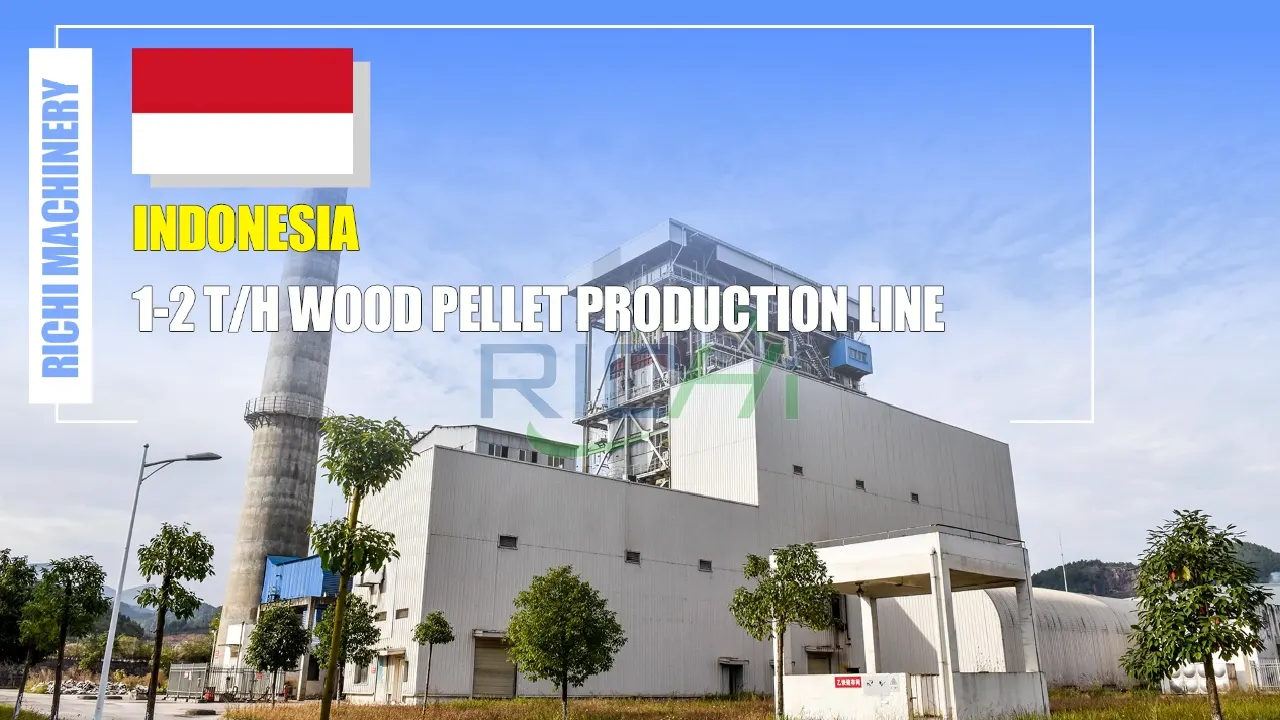

Featured images from a case study video of an Indonesian 1-2 t/h wood pellet production line

Indonesia 1-2T/H Wood Pellet Line Case Video

Want to watch the complete real-site wood waste pellet processing workflow? This real-shot video features our mature 1-2t/h wood pellet production line project deployed in Indonesia, covering crushing, drying, pelleting, cooling and pellet combustion, with freely adjustable finished pellet sizes to meet diverse demands.

Core Advantages

Optimized exclusively for fine and smooth sawdust, RICHI dedicated pellet mill gains outstanding strengths in output, pellet quality, continuous running and raw material flexibility to stand out in global biomass processing markets.

Lower Power Consumption

Higher Market Value

Steady Operation

Wide Adaptability

Lower Power Consumption

Equipped with low 1:6–1:8 compression ratio and high-opening-rate ring die, this sawdust pellet mill reduces molding resistance and boosts output by 20%-30% than ordinary wood pellet machines at the same power.

Taking the 90kW MZLH420 pellet mill as an example, it can produce 1.2-1.5 tons of wood pellets per hour with only 50–70 kWh power consumption per ton, saving over 30% electricity. It effectively cuts long-term operational costs for pellet processing factories.

Higher Market Value

Uniform and fine sawdust materials are precisely extruded into compact pellets with flawless, polished surfaces, no burrs and cracks. The finished products feature a powder rate below 0.5% with no dust after packaging.

These high-quality pellets enjoy strong market recognition, bringing an extra profit of 20–30 US dollars per ton. They are highly favored by global customers for residential fireplace heating and biomass fuel applications.

Stable Continuous Production

Three anti-blocking systems ensure ultra-stable continuous operation. The precision variable-frequency feeder avoids sawdust free-flow issues, while the low-compression die reduces internal extrusion resistance. The reserved quick cleaning opening handles sudden carbon blockages efficiently.

This triple lines of defense could effectively prevent frequent blockages, and even if production continues for a month, there is no need to stop the machine to clean, fully supporting 24-hour three-shift mass production.

Versatile Material Adaptability

The MZLH pellet mill features a flexible multipurpose design for diverse raw materials. Users only need to replace ring dies with different compression ratios: 1:6–1:8 for sawdust and 1:8–1:12 for ordinary wood chips.

With an optional arch-breaking feeder, it also processes light materials like wood shavings and rice husks. While flexibly adapting to ever-changing raw materials, it helps customers save on additional equipment investment costs.

Precisely Tailored Solutions

Based on the specific characteristics of the raw materials or site constraints, RICHI’s engineers will redesign the process workflow and adjust the quantity of required equipment.

Taiwan: 1-1.2 t/h biomass/wood pellet production line

Custom-built for special lightweight and durable raw materials, this line adopts a dedicated hammer mill for stable capacity. Covering 12×8×8 meters with 200KW/H power consumption, it needs 3 workers and a 30-day installation, delivering complete drawings, 2-year warranty and lifelong free technical support.

Main Equipment: Hammer mill, storage silo, sawdust pellet machine, cooler, shifting machine, simple tonnage packaging system.

Raw Materials: waste of wood plate
Particle Size: 6.0-12.0mm

Romania: 2 t/h sawdust pellet production line

Completed in 2022, this 2t/h beech wood pellet project serves a Romanian startup. Producing chemical-free, high-calorific eco-fuel from wood residues, it finished 60-day production, 40-day shipping and 60-day installation, empowering the client’s green heating business transformation.

Main Equipment: Drum dryer, saw dust pellet machine, counter-current cooler, screening machine, and other machinery.

Raw Materials: 100% beech sawdust
Transaction Amount: $22,8000

Canada: 2-3 t/h fully automated biomass/wood pellet production line

Tailored for the client’s compact and special workshop, this fully automatic line covers 26×20×12 meters with 200KW/H power. It requires 6 workers and 60-day installation, supports customized production processes, and provides full drawings, 1-year warranty and lifelong free technical guidance.

Main Equipment: Sawdust pellet press, shifter, dryer, storage silo, pellet mill for sawdust, cooler, shifter, automatic packaging machine.

Raw Materials: 50% moisture wood chips & sawdust
Particle Size: 6.0-12.0mm

Venezuela: 10-12 t/h Sawdust & Wood Combustion Pellet Production Line

This 10–12t/h biomass pellet line in Venezuela costs $450,000 and delivers an annual output of 30,000 tons. It recycles local sawdust, straw and rice husks into eco-friendly solid fuel boilers, creating local jobs while realizing full waste recycling under RICHI’s simple and stable process design.

Main Equipment: 470kw sawdust pellet making machine * 4, crusher, conveyor belt, 4.5m * 4.5m silo, bag filter, etc.

Installation Period: 30 days
Particle Size: 6.0-10.0mm

More Cases

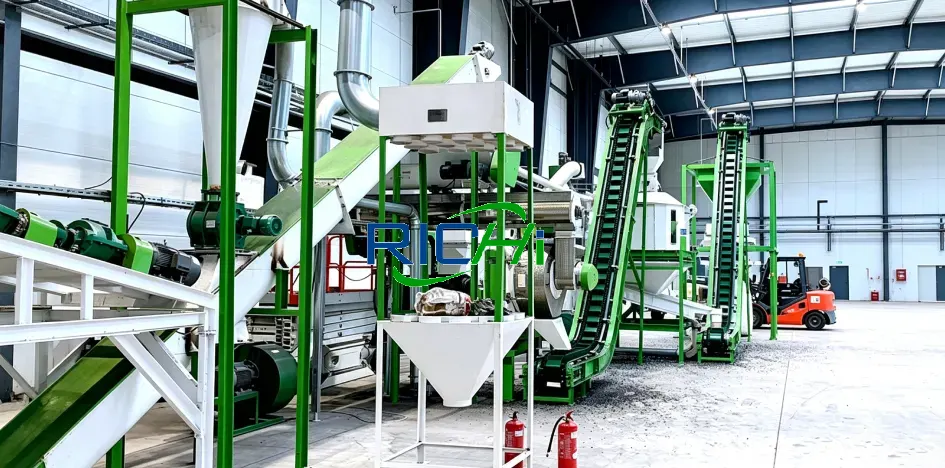

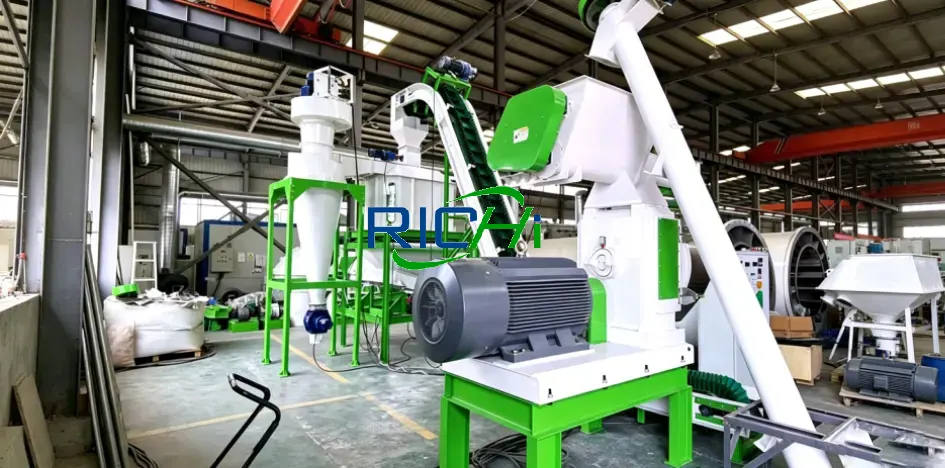

Actual layout of a 1-2TPH pellet production line

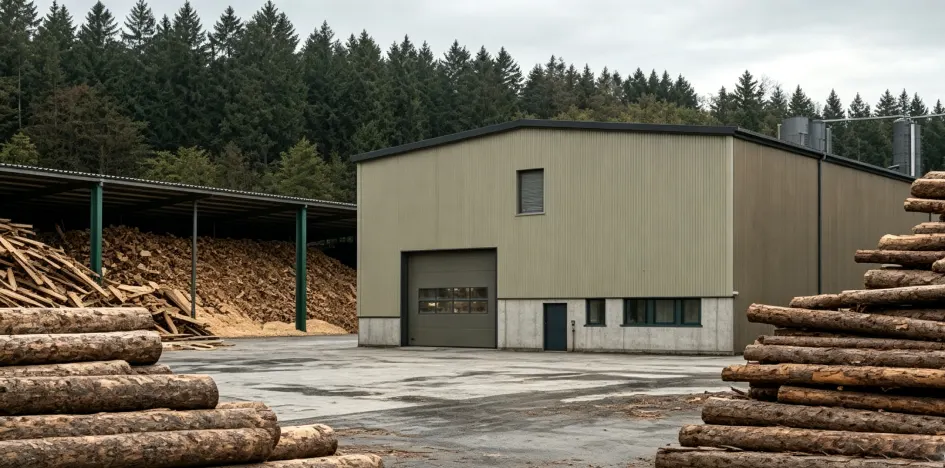

Canada: 2-3 t/h fully automated biomass/wood pellet production line

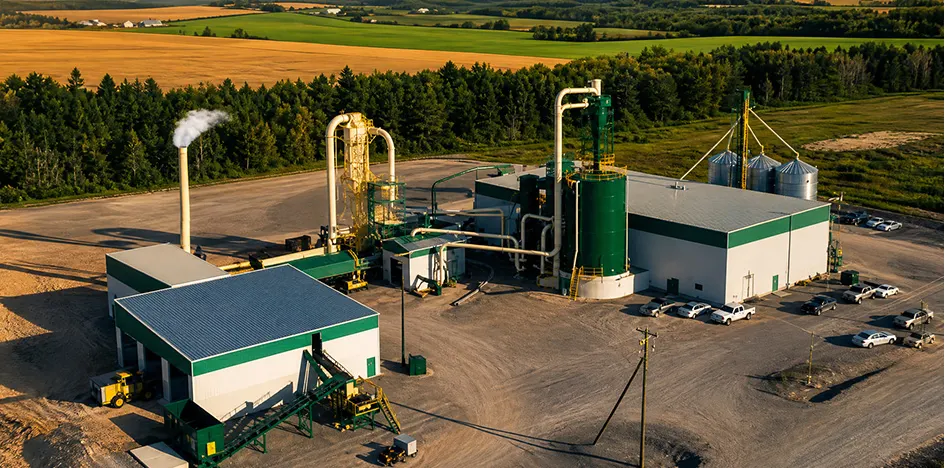

Multi-raw material combustion pellet production line

Sawdust Pellet Processing Flow

RICHI adopts a standardized and professional sawdust pellet processing workflow. From impurity removal and precise drying to pelletizing, cooling, screening and packaging, every procedure ensures stable production of high-quality and high-purity sawdust pellets.

Explore Full Biomass Pellet Production Line Click

Large vertical grain raw material storage silo for complete feed pellet plant

Preprocessing

Sawdust sourced from sawmills and furniture plants is conveyed onto vibrating screens to remove stones and coarse wood scraps. For iron-containing impurities, a suspended iron separator can be added. Then, the fully cleaned fine sawdust is stored in buffer bins for subsequent processing.

Drying

Rotary dryers with 300–400℃ hot air reduce sawdust moisture to 13%-18% if raw material exceeds 18% moisture. Fine granular sawdust dries quickly, and properly dried feedstock skips drying to save considerable energy and production expenses.

RICHI biomass wood fuel pellet mill for heating combustion pellets production

Pelletizing

Clean sawdust is fed evenly via variable-frequency twin-screw feeders into sawdust pellet mill chambers fitted with 42CrMo ring dies of 1:6-1:8 ratio above 40% open area. Equipped with 8-pole high-torque motors, the unit delivers stable continuous extrusion for fine sawdust.

Cooling

Fresh pellets leaving the mill hit 80-90℃ and stay 15-20min in counterflow coolers due to high heat capacity to cool down thoroughly. Adjustable level gauges control material depth while exhaust fans continuously pump out hot and humid air inside the cabinet.

Pellet vibrating grading screen machine to sieve uniform feed pellets

Screening

Cooled pellets go through vibratory screening, with collected fine dust reused for re-pelleting or packed as animal bedding. Customizable screen meshes produce sleek finished pellets with no burrs and leftover powder rate kept below 0.5%.

Automatic weighing packaging machine for finished feed and biomass pellets

Packing & Storage

Qualified pellets flow into finished bins and get heat-sealed in moisture-proof laminated sacks or bulk bags against dampness. Export pellets follow ENplus A1 tests on moisture, ash and calorific value before palletizing and storage inside dry warehouses.

Frequently Asked Questions

In actual production, customers often encounter common operational challenges. To help you select and operate pellet mills effectively, we have compiled six frequently asked questions with detailed answers.

Whether you are new to feed pelleting or planning to upgrade your existing line, this guide will provide valuable insights. The RICHI technical team is ready to offer one-on-one professional support at any time.

Learn More About Biomass Pellet Machine

What are the differences between sawdust pelletizing and wood chip pelletizing?

Fine sawdust (1-3mm) is easier to pelletize than 3-5mm wood chips with distinct production requirements. It features ultra-high fluidity, requiring frequency-conversion feeders to avoid free-flow runaway. Meanwhile, adopting a 1:6-1:8 low compression ratio, the output is higher than that of wood pelleting. In short, sawdust pellets have polished surfaces, stable heat value, lower costs and larger profit margins.

Why do sawdust pellets require a lower die compression ratio than wood pellets?

Fine sawdust has large contact areas and natural adhesion without fiber grinding, so a 1:6-1:8 low compression ratio suffices for molding. It reduces die resistance, increases output and slows die wear. An excessively high compression ratio can actually make the particles more prone to cracking. We recommend : 1:7-1:8 for hardwood sawdust (oak) and 1:6-1:7 for softwood sawdust (pine). First-time buyers are advised to run trial tests to confirm the optimal compression ratio.

What are the main application scenarios of finished sawdust pellets?

With ultra-low ash and high calorific value, sawdust pellets are premium biomass fuels for multiple scenarios. They suit European residential fireplace heating and high-standard clean boilers in food and pharmaceutical factories. They also serve as WPC fillers and water-absorbent animal bedding. Priced 10%-20% higher, they fit the ENplus A1 high-end market with great profit potential.

Do we need extra binders when making pellets from pure sawdust?

No extra binder is required normally, for natural lignin inside sawdust softens under high heat and pressure to bond particles well. Add binders only for overly dry sawdust, low-lignin softwood or high-density export-grade pellets. Since binders raise production cost, tweak moisture and compression ratio first. Additive-free pellets gain higher popularity among global eco-focused buyers.

Why does the sawdust pelletizer’s main motor surge in current and trip suddenly in operation?

Such abnormal conditions mostly stem from machine jamming with three common causes: overfeeding clogs the pressing granulation chamber, overly wet feedstock slips without forming pellets, or unseasoned new dies plus trapped debris lock the die. Pause feeding immediately and restart slowly later; the fitted overload protector prevents costly damage to the main driving motor.

Any cost-effective simple line refusing full-automatic pellet plants?

We supply a split semi-automatic solution separated into three standalone sections: chipping & crushing, drying, as well as pelletizing, cooling and packing. Materials are transferred by forklift or manpower. It only needs a 6m-high workshop and cuts investment on steel frames and auto parts, with each unit working independently, yet the downsides are increased labor costs and dust pollution.

Multi-series Pelletizing Solutions

Whether it is animal feed pellets or biomass fuel pellets, RICHI will give you the right solution to ensure efficient operation, high quality output and low cost production. Learn more about pelletizers and auxiliary equipment and how to create a complete and sustainable pellet production line.

Full animal feed pellet mill plant panoramic aerial view

SZLH Series

Feed Specialized pellet Mill

This full machine series is engineered to produce feed for livestock, poultry and aquatic animals. Hourly output spans 1 to 40 tons, and it matches production demands from small operators to big feed processing plants.

Industrial wood biomass combustion fuel pellet plant construction site

MZLH Series

Wood Biomass Fuel Pellet Mill

Equipped with arch-breaking hoppers and forced feeders, the series pellet mills effectively solve material bridging issues of fluffy wood materials, widely applied in industrial boilers, heating and biomass power generation.

Straw biomass forage pellet turnkey plant equipment overview

CZLH Series

Straw Biomass Pellet Mill

The series pellet mills process straw, husk and alfalfa into biomass fuel or ruminant feed pellets. Fitted with dual anti-bridging screw feeders and high-torque 8-pole motors, it handles tough, high-moisture fibrous materials efficiently.

RICHI aquatic fish feed extrusion pellet plant full factory aerial shot

SPHS Series

Aquatic feed extruder

RICHI aquatic feed extruders manufacture floating, slow-sinking and sinking fish & shrimp feeds alongside various pet food. Available in single-screw and twin-screw versions, the full product line accommodates diversified feed formulas.

Organic fertilizer pellet processing large factory with chimneys

FZLH Series

Organic fertilizer pellet mill

The series pellet mills turns manure, straw and kitchen scraps into organic fertilizer pellets. Standard anti-bridging hoppers, forced feeders and low-compression rings prevent blockage of sticky, high-moisture raw materials.

Complete cat litter pellet production plant exterior factory building

MSZLH Series

eco Cat litter pellet mill

This product series is equipped with stainless steel anti-bridging hoppers and variable-speed augers, it handles viscous wet raw materials with ease, and produces flushable, well-clumping eco-friendly cat litter pellets.
