Need a reliable way to turn corn, soybean meal, and additives into nutritious livestock feed? This production line delivers exactly that—day in, day out.
Capacity
1-160T/H
Countries
120+
Projects
1000+
Total Sales
$1.1 Billion+
Designed specifically for pigs, rabbits, horses, and specialty livestock like deer or donkeys, this livestock feed production line handles both grain-based and forage-based formulas. Key processes include grinding, precise batching, mixing, conditioning, and ring-die pelleting. The result? Uniform pellets with consistent size, hardness, and nutritional value. We’ve built these lines for farms and feed mills across 120+ countries—each one tailored to local raw materials and production goals.
Our video showcase
From raw material intake to finished feed pellets, our ensures precision, efficiency, and consistent quality at every stage. Below are demonstrations and on-site processing videos of the livestock feed production line equipment we have delivered from around the world.
sheep Livestock feed production line in Uganda
Uganda boasts booming sheep & goat farming with mutton exported to neighboring East Africa. RICHI built a dedicated sheep feed pellet production line for a company in Uganda. This plant makes balanced ruminant feed, accelerating livestock growth and helping local farmers grab regional mutton trade opportunities.
pig Livestock feed production line in Zimbabwe
Zimbabwe’s pig farming industry keeps expanding, yet the country still relies on pork imports. At the request of its customers, RICHI built a professional pig feed pellet production line in the local area. This plant produces cost-effective swine feed, cuts breeding costs and helps investors seize domestic pork market opportunities.
ruminant cattle Livestock feed production line in Tanzania
Tanzania owns East Africa’s massive cattle herds, with growing domestic beef consumption and regional export demand. RICHI has built professional ruminant cattle feed pellet production lines here. Nutritious pellets boost cattle growth and bring stable profits for local ranch investors.
Full Livestock Feed Production Process
From raw grain to finished bag—here’s how a livestock feed production line works in daily work. We’ve optimized each one for efficiency, consistency, and minimal waste.
01
Raw Material Pretreatment
Impurities, lumps, iron wires and stones are screened out to avoid machine blockages and product contamination downstream. Standard equipment includes cylindrical primary cleaning sieves and magnetic separators.
02
Crushing
Raw materials such as corn and soybean meal are pulverized to the required fineness. Livestock feed has less strict fineness requirements than aquafeed, so ordinary hammer mills are sufficient.
03
Batching & Mixing
Various raw materials are weighed proportionally according to feed formulas and fully blended in mixers. This stage is critical to guarantee balanced nutrition in finished feed.
04
Pelleting (For Pelleted Feed Only)
Uniform mixed mash is fed into the pellet mill, softened via steam in the conditioner, then extruded and shaped by ring dies and press rollers to form consistent solid pellets.
05
Cooling
Freshly extruded pellets carry high temperature and residual moisture. A cooler is mandatory to lower temperature and humidity and prevent mold growth during storage.
06
Screening & Packaging
Cooled pellets pass through screens to remove fines and broken fragments; qualified intact pellets are sent to automatic packaging machines for bagging.
Core Advantages of This Production Line
Customized layout design: Configured according to actual workshop dimensions, ceiling height and target output, no one-size-fits-all standard solutions forced on clients.
Modular assembly: Each production section can be freely added or removed; add pelleting unit for pellet production or omit it for pure mash output.
Optional automation levels: Fully automatic, semi-automatic and manual modes available based on budget and staffing conditions.
Multi-purpose flexibility: Switch between pig, cattle and sheep feed simply by changing formulas and ring dies.
Full turnkey service: Complete project coverage from layout design to on-site installation and commissioning.
Global Case Details
Real projects, real results. Below are our pleasant cooperation cases with livestock feed producers around the world—from Africa to the Middle East to Europe.

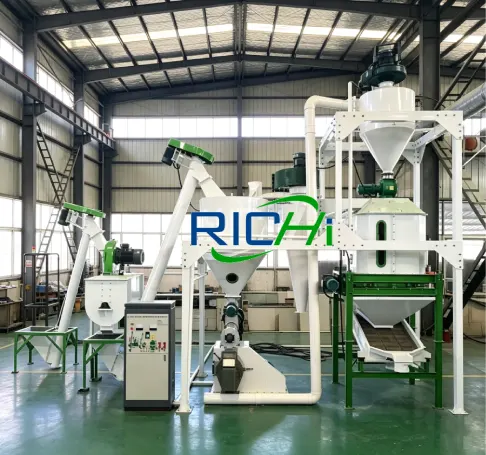

1-2 T/H Horse Livestock Feed Production Line
India
Client: An entrepreneur with extensive experience in horse feed and nutritional supplement
Main Equipment: Hammer mill, twin-shaft high-efficiency mixer, ring die animal feed pellet mill, cooler, pellet mill, screening machine, dry extruder and drum mixer, manual packaging system with sewing machine
Suggested Retail Price: $17,940

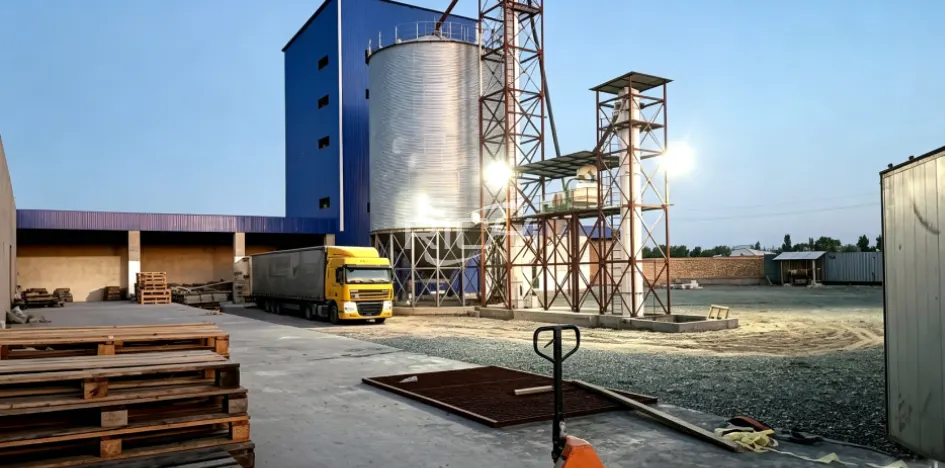

3-5 T/H Pig Feed Production Line
Bolivia
Client: A medium-sized pig farm facing the dual challenges of feed cost and quality
Main Equipment: Water drop crusher, single screw grain extruder, SZLH320 feed pelletizer, SKLN120 counterflow cooler, screw conveyor system, bucket elevator, pulse dust collector, electrical control system
Suggested Retail Price: $95,000
5-6 T/H Pellet & Powder livestock feed production line
Zimbabwe
Customer Requirements: An automated solution capable of simultaneously processing pelleted and powdered feed in one plant.
Main Equipment: Raw material silos, conveyors, hammer mill, twin-shaft paddle mixer, feed pellet mill, counter-current cooler, pellet crusher, double packaging line (50 kg and ton bags)
Suggested Retail Price: $183,970
10-12 T/H Sheep Feed Production Line
France
Raw Materials: Mainly corn, barley, and sorghum, with added beet meal and other auxiliary materials
Main Equipment: Animal feed feeders *3, sheep feed pellet mills *2, sheep feed crusher, sheep feed mixer, biomass boiler
Installation Period: 70 days
Suggested Retail Price: US$320,000
15 T/H Livestock Feed Production Line
Oman
Customer Needs: Expectations to reduce dependence on imported feed, increase local livestock productivity, and establish a vertically integrated agricultural enterprise
Main Equipment: SFSP66*60 feed hammer crusher, SHSJ2 twin-shaft mixer, SZLH420 feed pellet mill, SKLN1414 counter-flow cooler, etc.
Livestock Feed Mill Investment: $790,000
20 T/H Dairy Livestock Feed Production Line
Mexico
Customer Needs: To achieve on-site conversion and value-added processing of feed resources such as grains, meeting its own needs while selling some products to surrounding dairy farms.
Production Lines: Dairy compound feed production line, dairy premix feed production line, butter and corn flakes production line
Suggested Retail Price: $690,000
PREVIOUS
NEXT

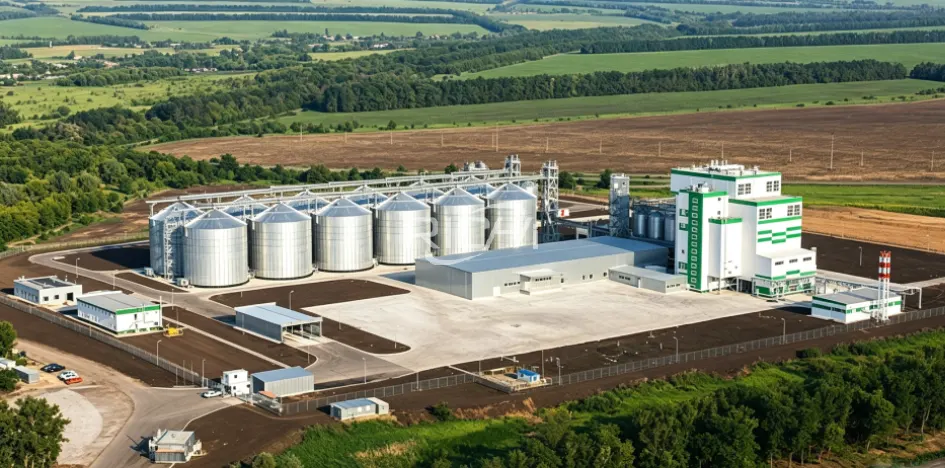

Specialized Livestock Feed Production Line
From cattle, horses, and pigs to various other livestock, we engineer dedicated feed lines for every production need. Whether producing mash, pellets, or extruded feeds, our systems are tailored to your animal type, raw materials, and capacity goals.
PREVIOUS
NEXT
Key Factors for Equipment Selection
Customized Solution Design
Every livestock feed production line is different—your raw materials, your target animals, your capacity goals are unique. That’s why we design each one from the ground up, with process flows ranging from 1 t/h all the way to 160 t/h. Below are process flow diagrams from projects we’ve actually delivered across different capacities—limited by space, we’ve selected a few to share, and we hope they give you a useful reference. If you’re planning a livestock feed production line—or have any questions—feel free to reach out to us anytime.

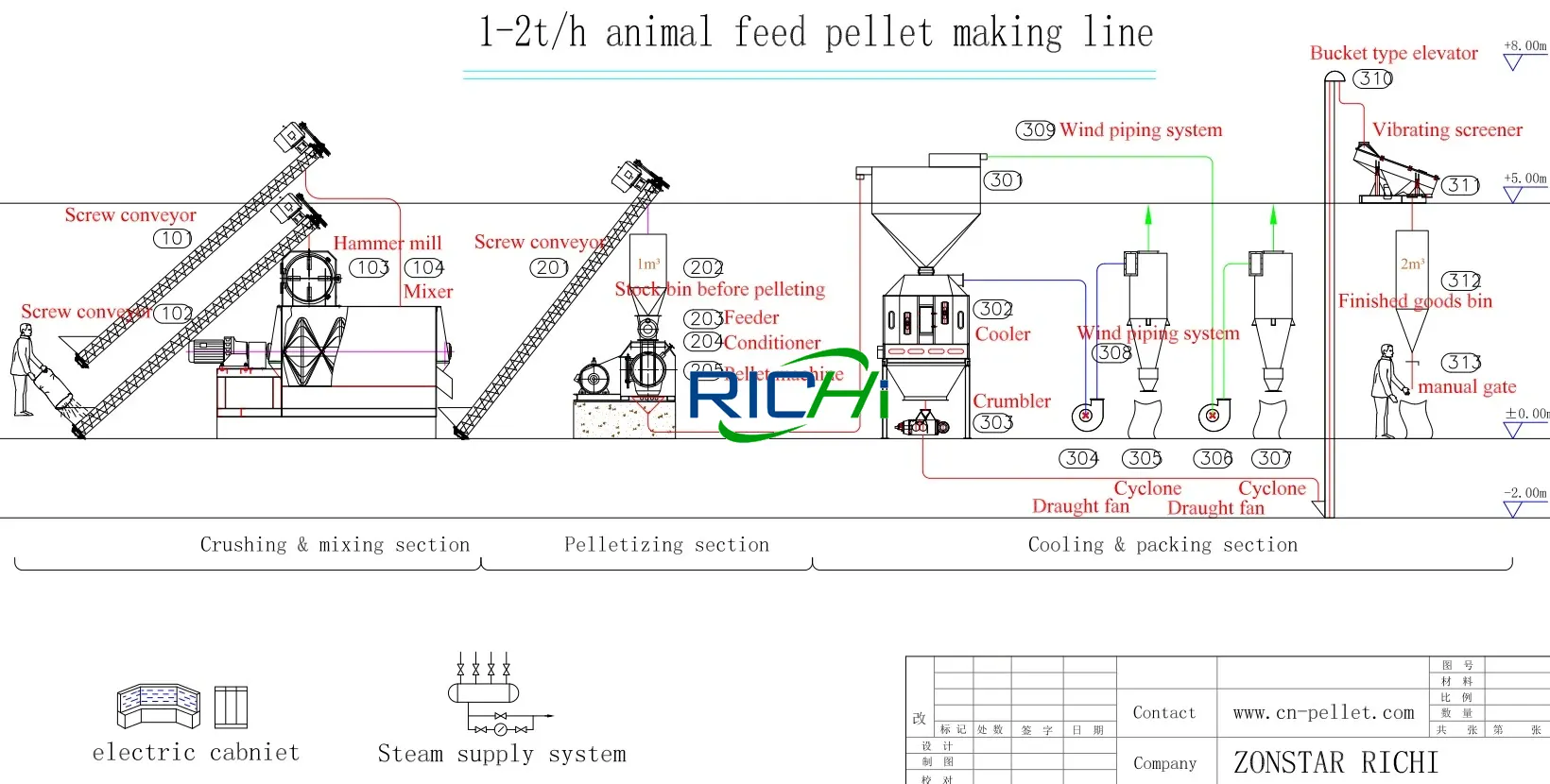

1–2 t/h Small Livestock Feed Production Line
Process Overview: Designed for small feed mills and farm‑use self‑mixing, this line delivers 1 to 2 tons per hour.
Versatility & Equipment: Beyond standard pig and poultry feed, this line can produce rabbit feed, duck feed, and other formulas by changing the ring die and adjusting the recipe. The non‑crumbler version has a lower investment cost, ideal for customers focusing on whole pellets. The crumbler version adds value with baby‑animal feed. Both configurations require no deep pit and keep overall height under 7 meters, making them plant‑friendly.
Profitability Outlook: At 1.5 t/h, monthly output reaches about 900 tons (single shift) with a gross margin above 20%. Payback period is typically 12–18 months – a solid starter solution for small feed projects.
（Note: The image above shows a production line containing broken particles. Click below for other solutions.）

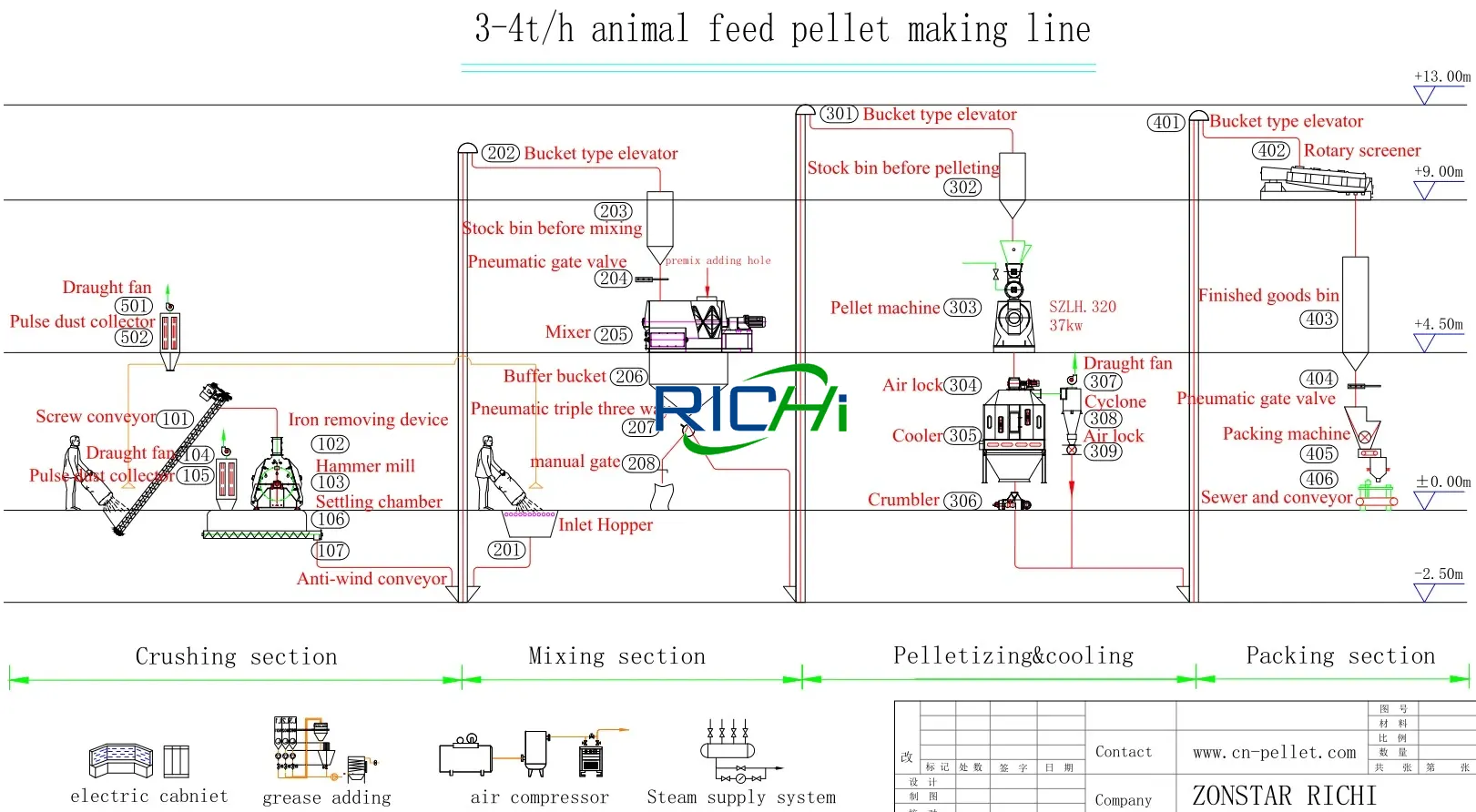

3–4 t/h Livestock Feed manufacturing Line
Process Overview: This line produces 3 to 4 tons per hour and comes in two versions – economy (basic) and elevator – to suit different site conditions and budgets.
Versatility & Equipment: The economy version saves about 20% on investment but has a slightly less streamlined layout. The elevator version ensures smoother material flow and higher automation. Both produce mash, pellets, and crumbles. Key equipment: drop‑shaped hammer mill, ribbon mixer, SZLH320 pellet mill, counter‑flow cooler, vibrating screen, and automatic bagging system.
Profitability Outlook: At 3.5 t/h, monthly output is about 2,100 tons (single shift). The economy version costs 15–20% less than the elevator version, making it a good choice for budget‑conscious startups. The elevator version, while slightly more expensive upfront, offers lower energy consumption and easier maintenance. Payback typically falls within 14–20 months.
Note: The image above shows a simplified solution. Click below for other solutions.

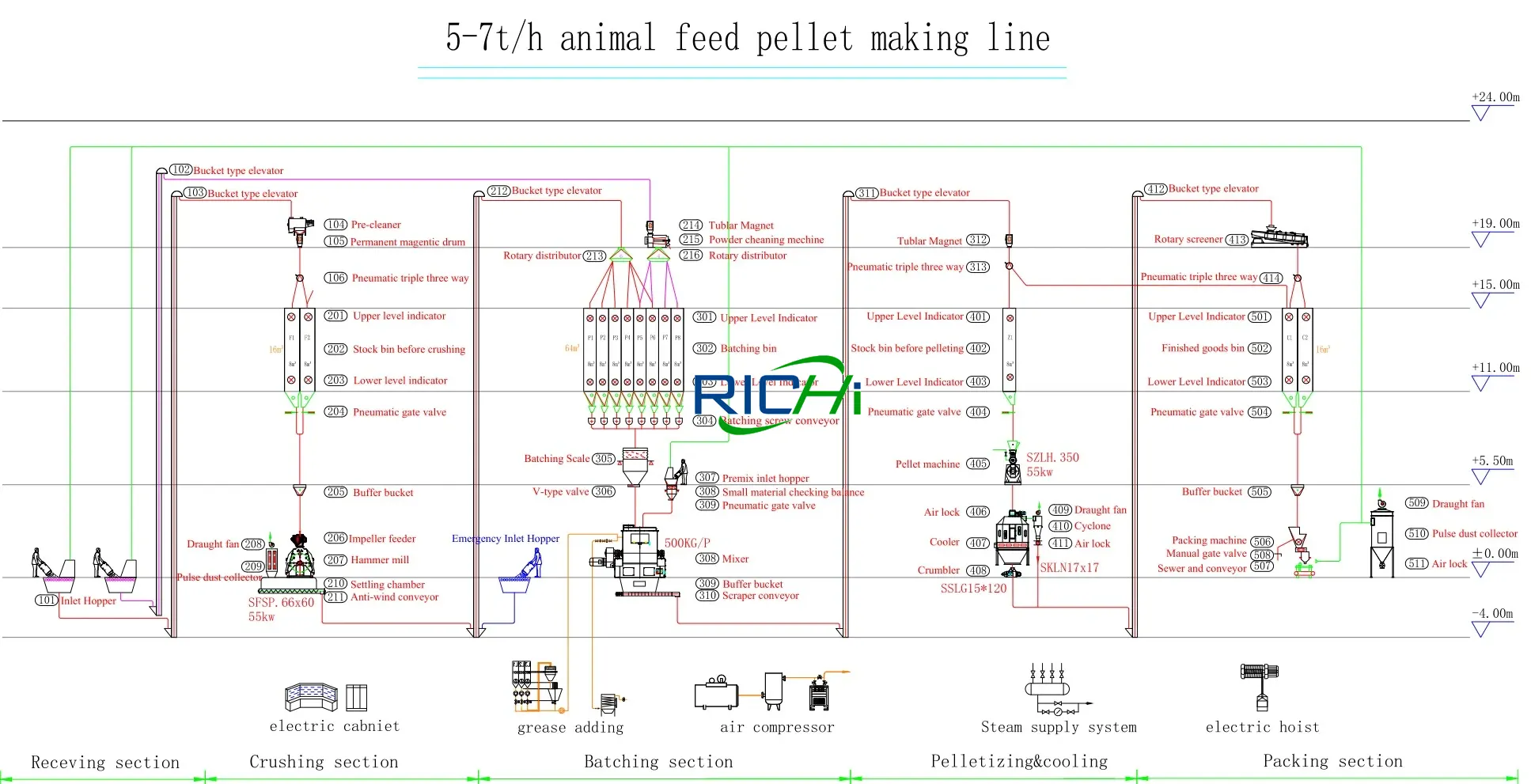

5–7 t/h Complete Livestock Feed Production line
Process Overview: This line covers 5 to 7 tons per hour and is available in three configurations: high‑end (premium), automatic basic, and automatic premium – each matching different automation needs.
Versatility & Equipment: All three configurations can produce mash, pellets, and crumbles. The premium version suits clients with good plant height and a demand for full automation. The automatic basic fits those wanting automation on a moderate budget. The automatic premium adds flexibility for frequent recipe switching – ideal for feed mills producing multiple formulations.
Profitability Outlook: At 6 t/h, annual output reaches about 36,000 tons (two shifts). The premium version has the highest investment but the lowest labor cost (only 3–4 operators per shift). Payback for the automatic basic is around 15–22 months; the automatic premium, with its quick‑change capability, pays back in 18–24 months for multi‑product operations.
Note: The image above shows an automatic high-efficiency distribution line. Click below for other solutions.

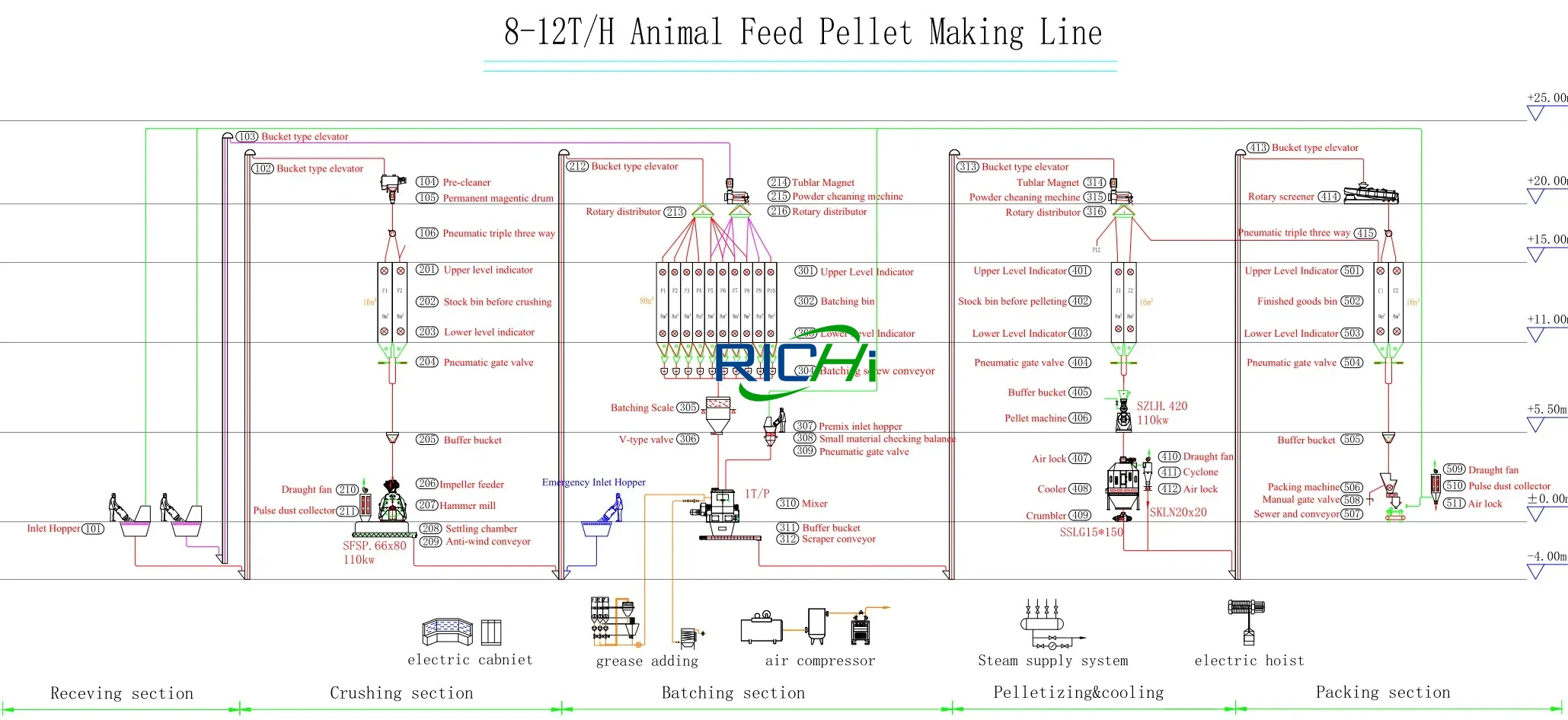

8–12 t/h Low Cost Livestock Feed Production Line
Process Overview: This line delivers 8 to 12 tons per hour and offers three configurations – manual, automatic basic, and automatic premium – covering a full spectrum from semi‑auto to fully automated.
Versatility & Equipment: The three configurations serve different market needs. Manual – low investment, intuitive operation, ideal for low‑labor‑cost regions with infrequent formula changes. Automatic basic – best value, good efficiency boost at moderate cost. Automatic premium – fully featured, for large feed mills pursuing full automation and multiple recipes.
Profitability Outlook: At 10 t/h, annual output reaches 60,000 tons (two shifts). The manual line has the lowest initial cost but requires the most labor (6–8 per shift). The automatic premium costs 30–40% more but cuts labor by over 50% and delivers better mixing accuracy and product consistency. Payback: manual 18–24 months, automatic basic 16–22 months, automatic premium 20–26 months.
Note: The image above shows an automatic high-efficiency distribution line. Click below for other solutions.

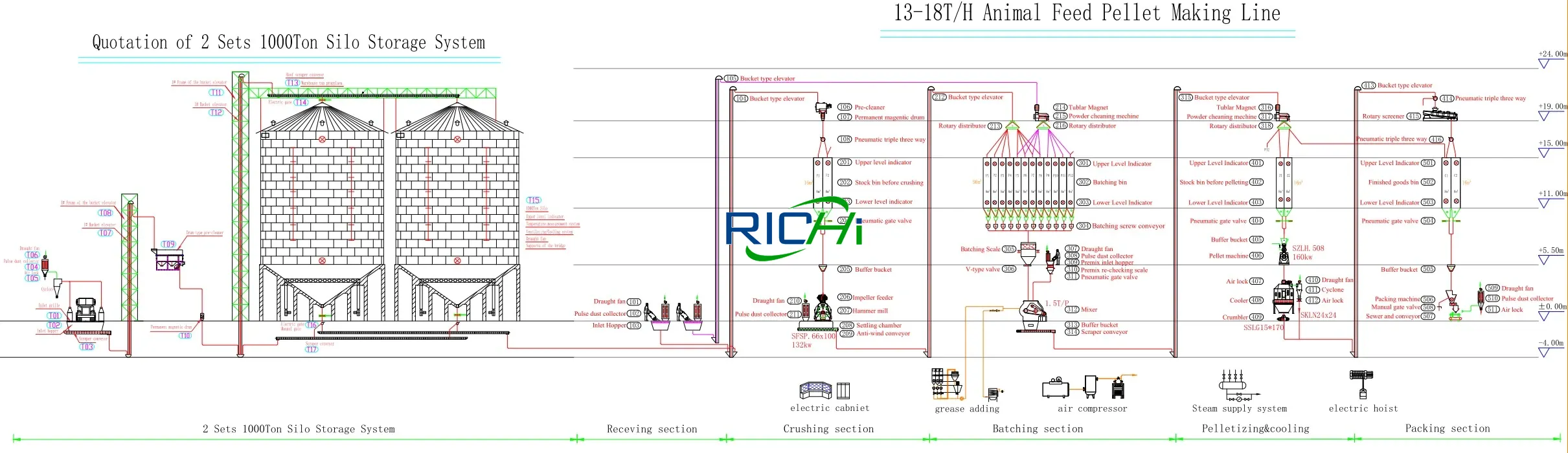

13–18 t/h Livestock Feed Pellet Production Line for sale
Process Overview: This line produces 13 to 18 tons per hour, features a fully automatic computer‑controlled batching system, and is offered with or without silos.
Versatility & Equipment: The non‑silo version suits clients who already have raw material storage or use bagged ingredients. The silo version is for large feed mills receiving bulk ingredients by truck and pursuing end‑to‑end automation. Both produce mash, pellets, and crumbles for pigs, chickens, ducks, rabbits, and other livestock.
Profitability Outlook: At 15 t/h, annual output is about 90,000 tons (two shifts). Adding silos increases initial investment by $300,000–500,000 but saves $3–5 per ton in labor and allows bulk purchasing at favorable prices. Payback is typically 2–3 years.
Note: The image above shows an automatic line with silos. Click below for other solutions.

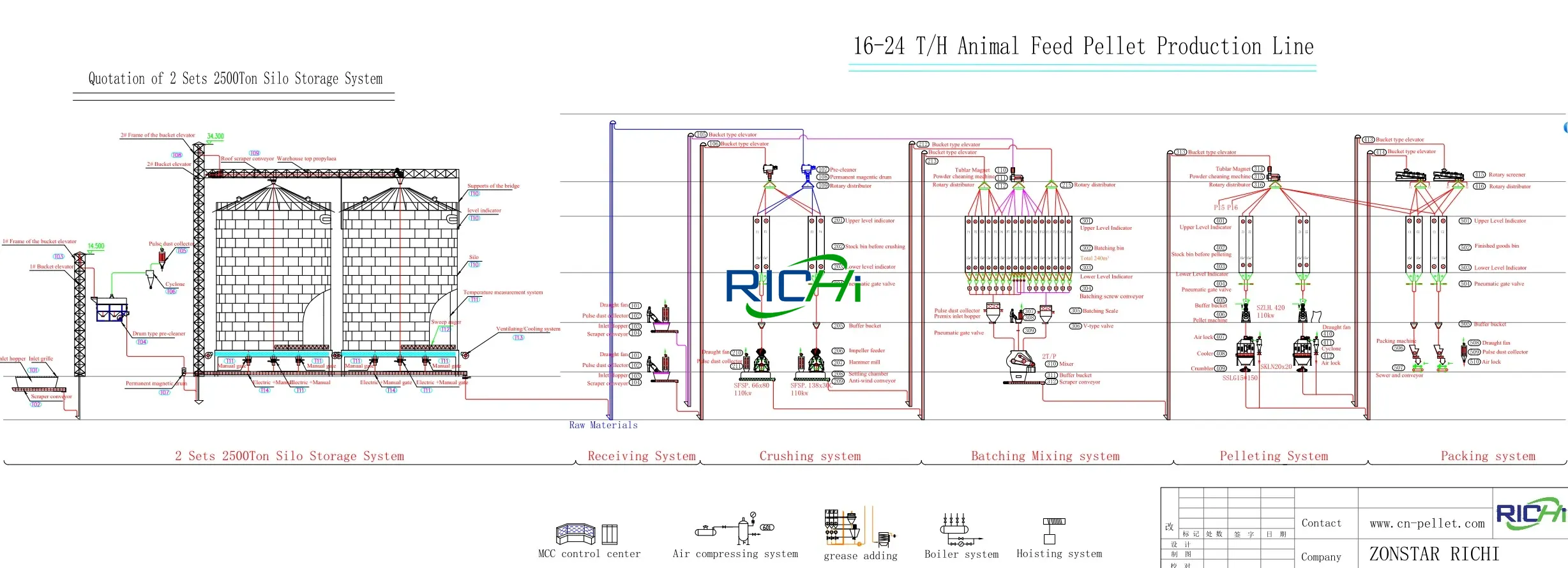

16–24 t/h Livestock Feed processing Line
Process Overview: This line produces 16 to 24 tons per hour, equipped with a full computer‑controlled batching system, and available with or without silos – designed for medium‑to‑large feed manufacturers.
Versatility & Equipment: The non‑silo version suits bagged‑ingredient users or those with existing storage. The silo version is for bulk‑oriented, high‑automation facilities. Both produce mash, pellets, and crumbles for pigs, poultry, ducks, rabbits, cattle, and sheep.
Profitability Outlook: At 20 t/h, annual output reaches 120,000 tons (two shifts). The dual‑mill design allows one mill to be serviced while the other continues production, ensuring uptime. The silo version saves $4–6 per ton in labor and enables bulk purchasing advantages. Payback is about 2.5–3.5 years.
Note: The image above shows an automatic line with silos. Click below for other solutions.

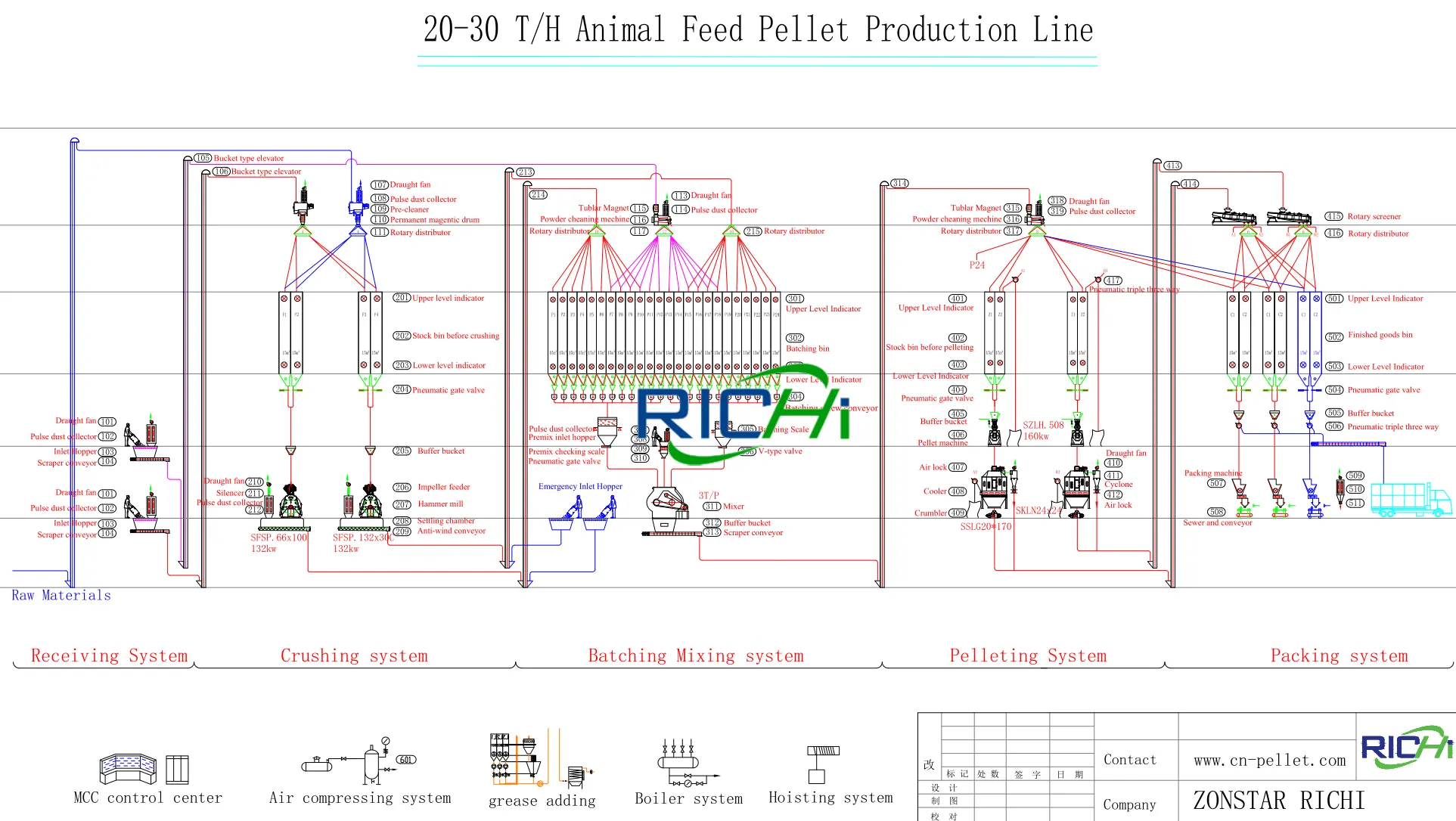

20–30 t/h Customized Livestock Feed Production Line
Process Overview: This line produces 20 to 30 tons per hour – positioned for large commercial feed mills – with a full computer‑controlled batching system, offered with or without silos.
Versatility & Equipment: The non‑silo version suits clients with existing storage or bagged ingredients. The silo version is for high‑volume plants (over 100,000 t/year) seeking maximum automation. Both support complete feed, concentrate, mash, and pellets.
Profitability Outlook: At 25 t/h, annual output is about 150,000 tons (two shifts). Economies of scale reduce fixed costs per ton by 20–25%. The silo version allows bulk buying at low prices, further cutting costs. Payback is roughly 3–4 years.
Note: The image above shows an automatic line without silos. Click below for other solutions.

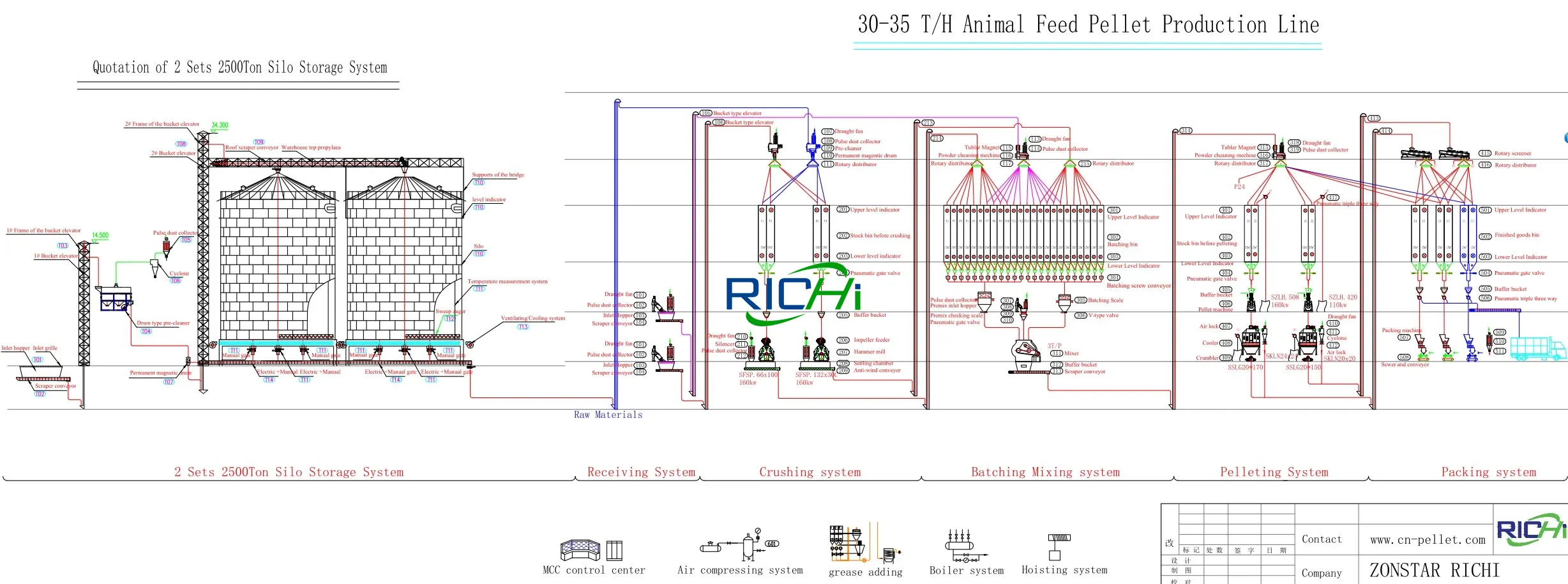

30–35 t/h Livestock Feed Production plant
Process Overview: This line produces 30 to 35 tons per hour – for large commercial feed mills – with full computer batching and high‑capacity pelleting, offered with or without silos.
Versatility & Equipment: The non‑silo version suits clients with existing storage or site constraints. The silo version fits large groups producing over 150,000 t/year with full‑chain automation. The three‑mill and three‑pellet‑mill parallel design offers high flexibility – simultaneous production of multiple recipes.
Profitability Outlook: At 32 t/h, annual output is about 190,000 tons (two shifts). The parallel design allows maintenance without total shutdown – reducing downtime losses. Economies and automation lower production cost per ton by 15–20% compared to smaller lines. Payback: 3–4 years.
Note: The image above shows an automatic line with silos. Click below for other solutions.

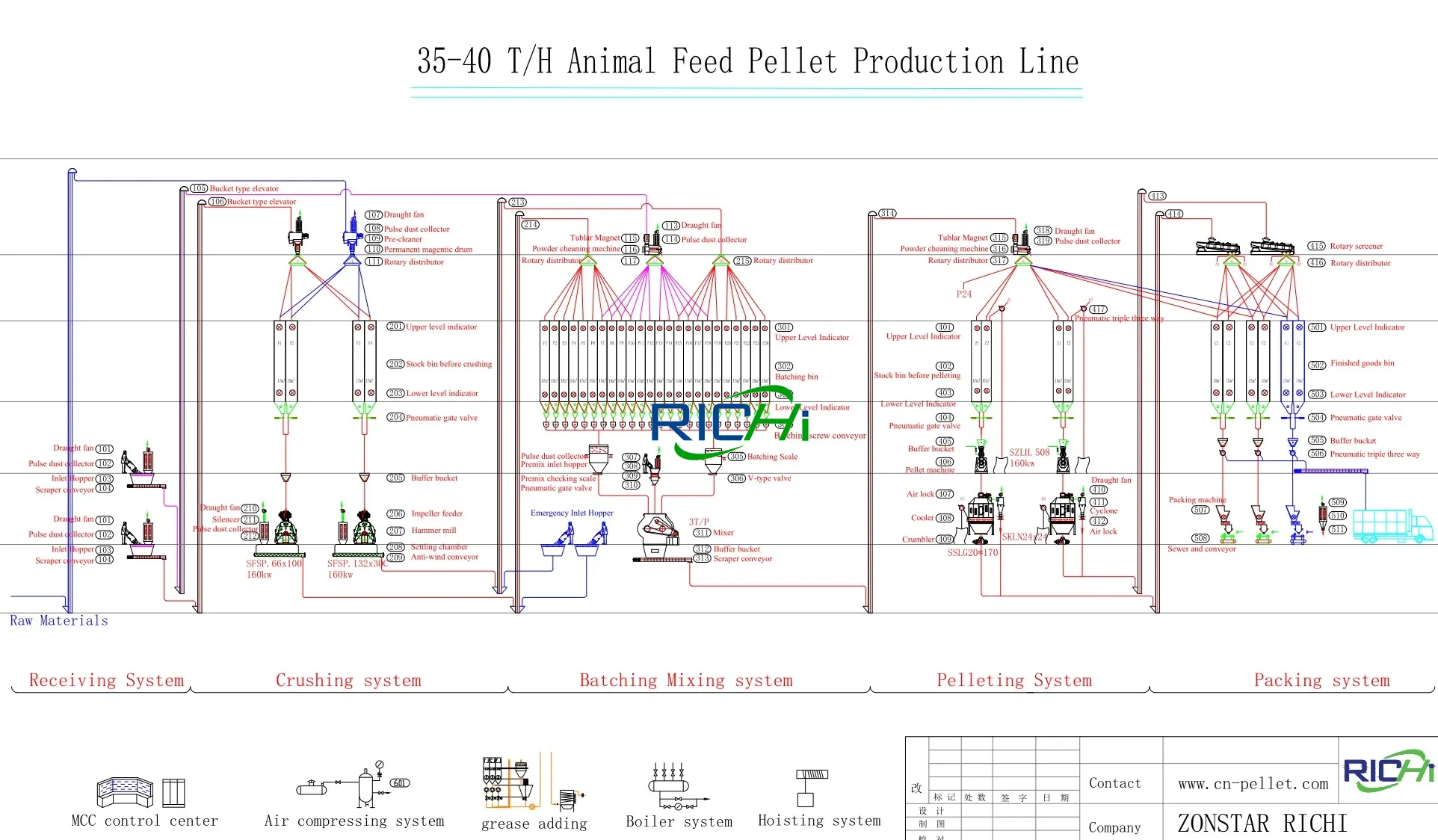

35–40 t/h commercial Livestock Feed Production Line
Process Overview: This line produces 35 to 40 tons per hour – a high‑capacity solution for large feed groups – with full computer batching and large‑scale silos as standard.
Versatility & Equipment: This line comes standard with silos, enabling full automation from intake to dispatch. The four‑mill + four‑pellet‑mill parallel architecture offers high flexibility – simultaneous production of 3–4 different recipes with non‑stop changeover. Key equipment includes large silos, hammer mills, computer batching, paddle mixers, SZLH508 pellet mills, coolers, and bagging systems.
Profitability Outlook: At 38 t/h, annual output reaches about 230,000 tons (two shifts). The multiple‑unit design ensures reliability – a single unit failure doesn’t stop the entire line. Compared to a 30‑t/h line, production cost per ton drops by another 8–12%. Payback: 3.5–4.5 years.
Note: The image above shows an automatic line without silos. Click below for other solutions.

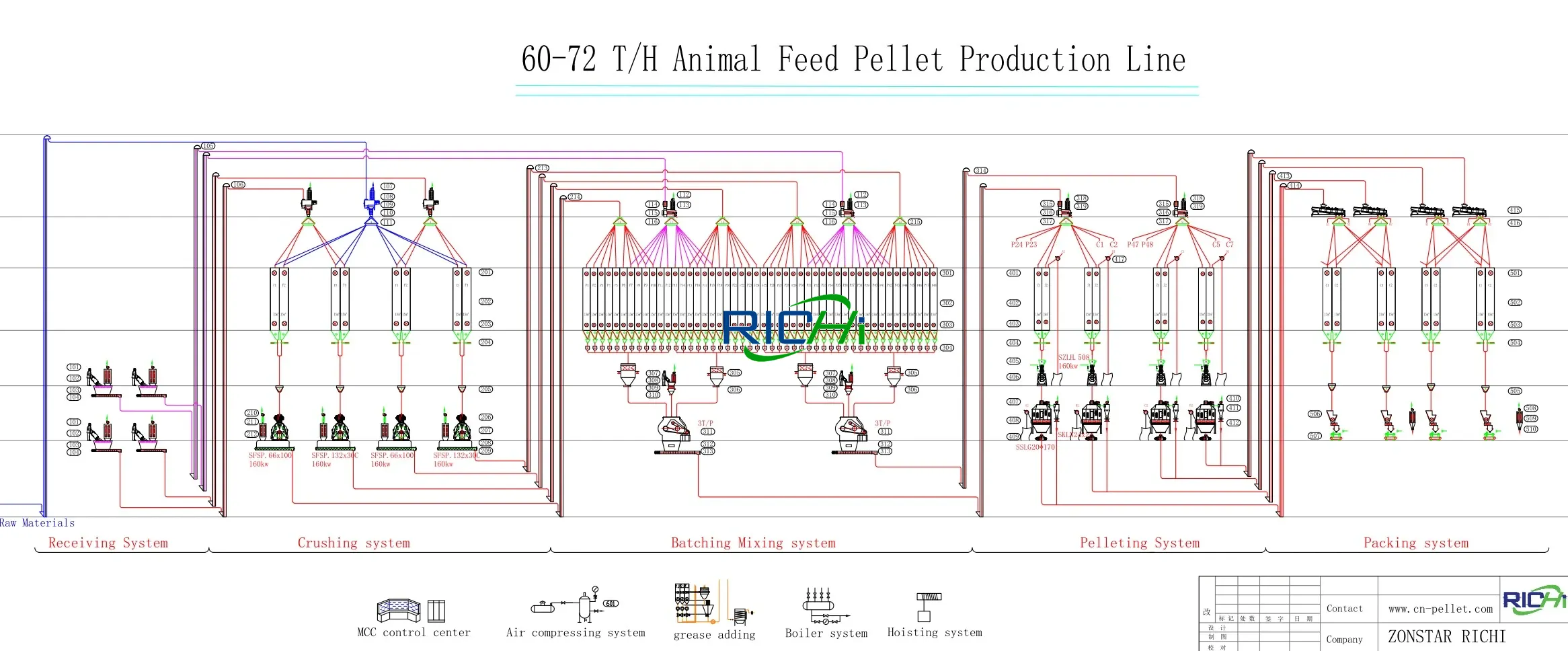

60–72 t/h Livestock Feed Production Line For Sale
Process Overview: This line produces 60 to 72 tons per hour – the industry’s top‑tier mega‑scale livestock feed pellet processing solution, representing the highest level of feed equipment technology.
Versatility & Equipment: This is the ultimate configuration for ultra‑large feed bases producing over 400,000 t/year. The massive parallel design (eight mills + six/eight pellet mills) delivers unmatched flexibility and reliability – simultaneous production of 6–8 different recipes, with individual or multiple unit failures not affecting the overall line. The modular design allows phased commissioning to match market growth.
Profitability Outlook: As the industry’s top mega‑scale line, total production cost per ton is at the industry’s bottom. However, initial investment is significant (equipment + silos + auxiliaries: $5–8 million), with payback around 5–7 years. This line is best suited as a core production hub for large agricultural groups, serving feed demand within a 300–500 km radius.
Powdered feed or pelleted feed?
We’ve just walked you through our full range of pelleted feed solutions—from 1 to 160 t/h, with diverse configurations to match your automation needs and site conditions.
But pellets aren’t the only way to go. For many livestock operations—especially those mixing their own rations on‑farm or feeding ruminants—mash feed remains a practical, cost‑effective choice. RICHI offers equally proven mash feed production lines, tailored to your specific ingredients and capacity targets. Which route is right for you? It depends on your product positioning, your feeding system, and your budget—and we’re happy to help you weigh the options.
Pelleted Feed Process
Pellet shape: Cylindrical solid pellets
Configuration equipped with steam conditioner and ring-die extrusion system
Adjustable pellet diameter: 3.5–6.5 mm for pig feed; 6–12 mm for cattle & sheep feed.
Choose pelleted feed production line: Commercial feed sales, long-distance storage & transportation, pursuit of faster livestock weight gain and better feed intake.
Mash Feed Process (No Pelleting Required)
Finished form: Loose powder
Workflow skips pelleting and cooling after crushing & mixing
Advantages: Lower investment and power consumption; ideal for tight budgets or short-term storage needs.
Choose mash feed production line: Limited budget, feed mainly for self-farm use, low requirements for storage duration. Low upfront investment and simplified workflow.
Plant Build Steps
Building a successful livestock feed production line isn’t just about stacking machines—it’s comprehensive planning for consistent raw material variability, reliable power supply, and local labor. Here’s our practical step‑by‑step detailed approach from actual real own projects.
